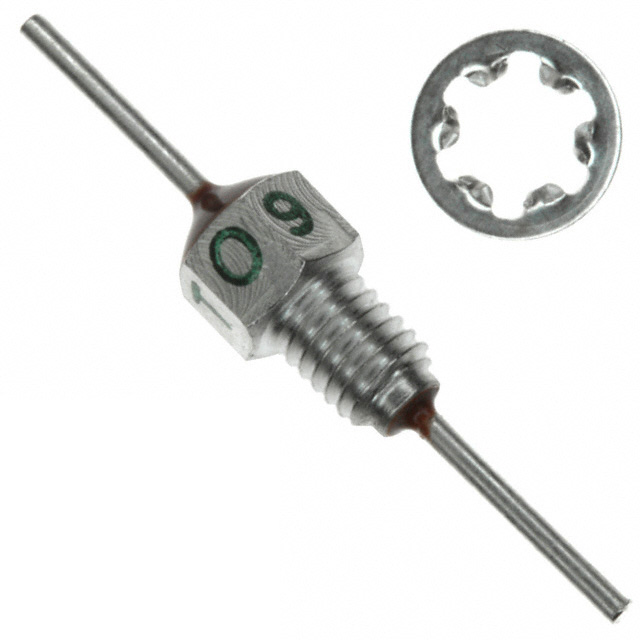

4400-091LF

$21.28

Description：CAP FEEDTHRU 200V AXIAL
Series：4400
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:6e9d248cbdee Category: Feed Through Capacitors Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP FEEDTHRU 200V AXIAL
Series：4400
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Voltage - Rated：200V
Current：10:00 AM
Operating Temperature：-55°C ~ 125°C
Mounting Type：-
Package / Case：Axial, Bushing
Size / Dimension：0.157" Dia x 0.276" L (4.00mm x 7.00mm)
Capacitance：-
Tolerance：-
DC Resistance (DCR) (Max)：-
Insertion Loss：20dB @ 100MHz
Temperature Coefficient：-
Ratings：-
Height (Max)：-
Thread Size：M3x0.5

Download product information

4400-091LF

Overview

The 4400-091LF is a feedthrough capacitor from the Tusonix 4400 series, rated at 200V with a maximum current of 10 A. It features an axial bushing package with M3x0.5 threading and dimensions of 4.00mm diameter by 7.00mm length. The component operates within a temperature range of -55°C to +125°C and provides 20dB insertion loss at 100MHz.

Feature Summary

Provides electromagnetic interference suppression through feedthrough filtering architecture
Features axial bushing mounting configuration for secure panel integration
Supports high-current applications up to 10 A continuous operation

Applications

Electromagnetic interference filtering in electronic systems
Power line conditioning for sensitive equipment
Panel-mounted signal integrity protection

Procurement Notes

Verify the specific manufacturer part number against official datasheets to ensure compatibility with design requirements. Confirm that the M3x0.5 thread specification matches the intended mounting hardware. Check RoHS compliance status if required by project regulations. Ensure the 200V rating and 10A current capacity meet the operational demands of the target circuit application.

Selection Notes

Select this component when axial feedthrough topology is required for EMI suppression in space-constrained panels. The M3x0.5 thread offers standard mounting compatibility. Consider the 20dB insertion loss performance at 100MHz for relevant frequency attenuation needs. Verify thermal stability requirements align with the -55°C to +125°C operating range for environmental resilience.

Part Context

This component belongs to the Tusonix 4400 series of feedthrough capacitors manufactured by CTS Electronic Components. The series specializes in axial bushing designs for robust electromagnetic interference filtering. These components are designed for reliable performance in demanding industrial and commercial environments requiring stable capacitance characteristics across wide temperature variations.
