4400-093LF

Overview

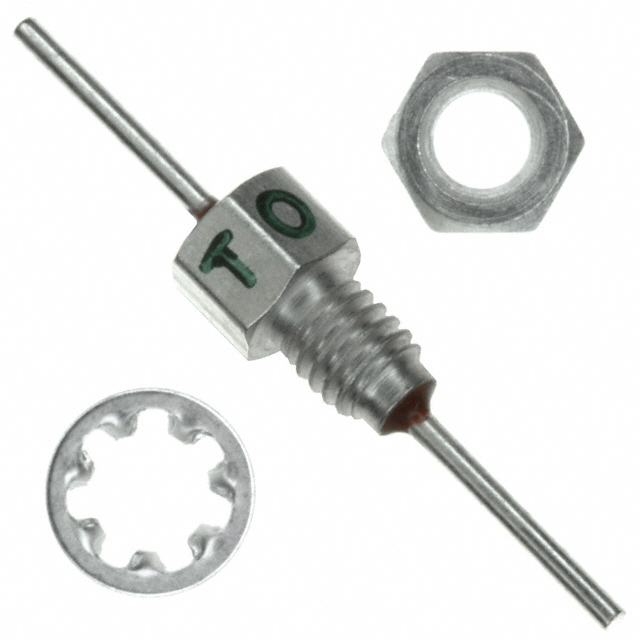

The 4400-093LF is a feedthrough capacitor from the Tusonix 4400 series, rated at 50V with a capacitance of 10000 pF. It supports a maximum current of 10 A and operates within a temperature range of -55°C to 125°C. The component features an axial bushing package with M3x0.5 threading and dimensions of 4.00mm diameter by 7.00mm length. It provides 35dB insertion loss at 100MHz.

Feature Summary

• Provides electromagnetic interference suppression through high-capacitance feedthrough design
• Features threaded axial mounting for secure panel integration
• Maintains electrical stability across extended industrial temperature ranges

Applications

• Electromagnetic interference filtering in electronic enclosures
• Power line conditioning for sensitive instrumentation
• Panel-mounted noise suppression in industrial control systems

Procurement Notes

Verify that the specific suffix LF indicates lead-free compliance status against the manufacturer's latest documentation. Confirm that the M3x0.5 thread specification matches the mechanical interface requirements of the intended mounting panel. Ensure the 10A current rating aligns with the operational load conditions to prevent thermal degradation during continuous use.

Selection Notes

Select this component when a compact axial feedthrough solution is required for low-voltage applications. The 10000 pF capacitance offers significant attenuation for high-frequency noise. Consider the M3x0.5 threading constraint for panel cutout compatibility. Evaluate the 10A current limit against peak circuit demands to ensure reliable long-term performance without overheating.

Part Context

This part belongs to the Tusonix 4400 series of EMI feedthrough filters manufactured by CTS Electronic Components. The series utilizes ceramic dielectric materials for stable capacitance values. The 4400-093LF variant specifically targets applications requiring robust mechanical mounting via threaded bushings alongside effective radio frequency noise suppression.

Replacement Considerations

Consult official cross-reference lists for equivalent axial feedthrough capacitors with matching M3x0.5 threading and 10000 pF capacitance. Verify that substitute components maintain identical voltage ratings and current handling capabilities to ensure system integrity.
