Product Detailed Parameters
- Description：CAP FEEDTHRU 100V AXIAL
- Series：4400
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：100V
- Current：10:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial, Bushing
- Size / Dimension：0.157" Dia x 0.276" L (4.00mm x 7.00mm)
- Capacitance：-
- Tolerance：-
- DC Resistance (DCR) (Max)：-
- Insertion Loss：30dB @ 100MHz
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：M3x0.5
Download product information
Overview

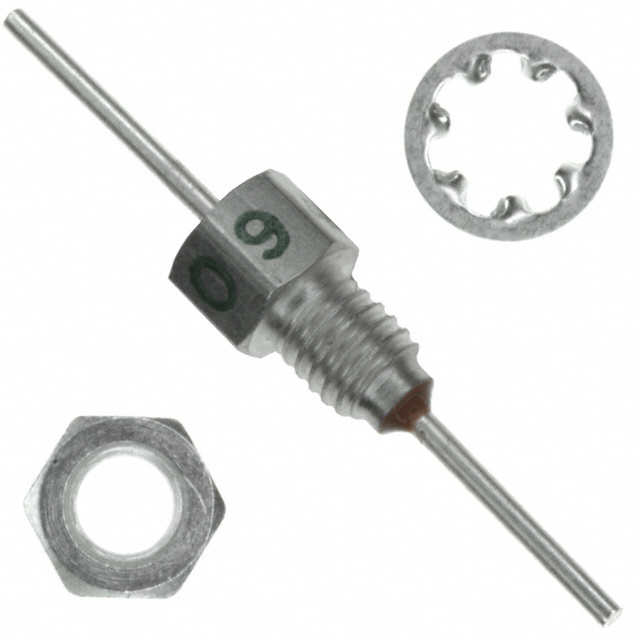

The 4400-094LF is a feedthrough capacitor from the Tusonix 4400 series, rated at 100V with a capacitance of 4700 pF. It supports a current rating of 10 A and operates within a temperature range of -55°C to 125°C. The component provides an insertion loss of 30dB at 100MHz. It features an axial bushing package with dimensions of 0.157 inches in diameter by 0.276 inches in length (4.00mm x 7.00mm) and utilizes M3x0.5 threading specifications.
Feature Summary
- Provides effective electromagnetic interference filtering through high insertion loss performance
- Designed for robust power line applications with high current handling capability
- Utilizes axial bushing mounting for secure mechanical integration
Applications
- Power supply input filtering
- Electromagnetic interference suppression in electronic equipment
- High-frequency noise reduction in signal lines
Procurement Notes
Verify RoHS compliance status as source data indicates non-compliance for the base model while the LF suffix typically denotes lead-free variants. Confirm exact packaging details such as bulk quantities against distributor listings. Ensure thermal ratings align with specific operational environments given the wide temperature range specification.
Selection Notes
Select this component when axial bushing mounting is required for high-current feedthrough applications. The 4700 pF capacitance offers specific filtering characteristics suitable for certain frequency ranges. Consider the M3x0.5 thread size for compatibility with existing panel cutouts and mounting hardware requirements.
Part Context
This part belongs to the Tusonix 4400 series of feedthrough capacitors manufactured by CTS Electronic Components. The series is designed for EMI suppression in various electronic systems. The LF suffix generally indicates lead-free construction, though verification against official datasheets is necessary due to conflicting regulatory data in available sources.
Replacement Considerations
Direct substitutes include other axial bushing feedthrough capacitors with similar 4700 pF capacitance and 100V ratings. Verify that replacement parts match the M3x0.5 threading and physical dimensions to ensure proper fitment in existing assemblies.
