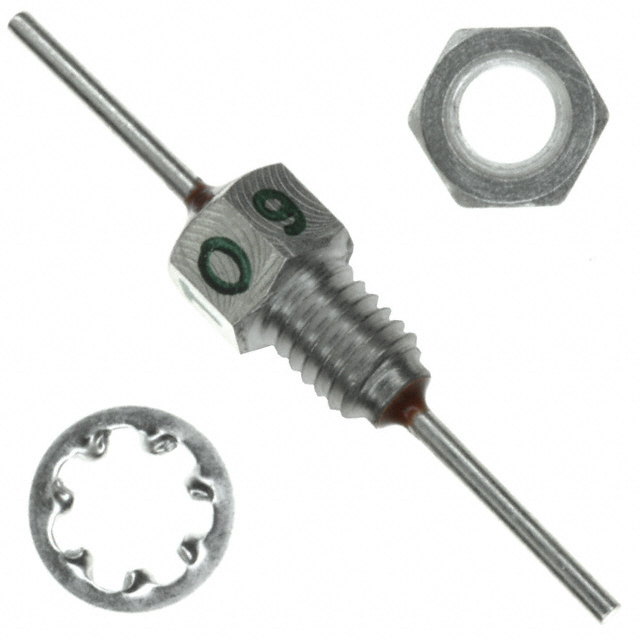

4400-095LF

$31.94

Description：CAP FEEDTHRU 200V AXIAL
Series：4400
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:6909d6e756f2 Category: Feed Through Capacitors Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP FEEDTHRU 200V AXIAL
Series：4400
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Voltage - Rated：200V
Current：10:00 AM
Operating Temperature：-55°C ~ 125°C
Mounting Type：-
Package / Case：Axial, Bushing
Size / Dimension：0.157" Dia x 0.276" L (4.00mm x 7.00mm)
Capacitance：-
Tolerance：-
DC Resistance (DCR) (Max)：-
Insertion Loss：20dB @ 100MHz
Temperature Coefficient：-
Ratings：-
Height (Max)：-
Thread Size：M3x0.5

Download product information

4400-095LF

Overview

The 4400-095LF is an EMI feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance value of 10 pF with a voltage rating of 200 V and a maximum DC current of 10 A. The component operates within a temperature range of -55°C to +125°C. Its physical dimensions are 0.157 inches in diameter by 0.276 inches in length (4.00 mm x 7.00 mm), utilizing an M3x0.5 thread size for mounting.

Feature Summary

Provides electromagnetic interference suppression through axial bushing construction
Supports high direct current loads up to 10 amperes
Maintains stable electrical performance across extreme temperature environments

Applications

Electronic equipment requiring EMI filtering
Power supply input stages
Signal line protection circuits

Procurement Notes

Verify the specific manufacturer part number against official Tusonix or CTS documentation to ensure compatibility with system requirements. Confirm that the M3x0.5 thread size matches the intended panel or chassis mounting interface. Check RoHS compliance status if restricted substances regulations apply to the final assembly. Ensure the 200V rating and 10A current capacity meet the operational circuit demands before procurement.

Selection Notes

Select this component when a compact axial feedthrough filter is required for low-capacitance applications. The 10 pF value is suitable for high-frequency noise attenuation where minimal signal loading is necessary. Consider the 200V rating and 10A current handling capability to ensure adequate safety margins for the specific power or signal lines being filtered.

Part Context

This component belongs to the 4400 series of EMI feedthrough filters produced by Tusonix. These devices are designed for panel mounting via threaded bushings. The series offers various capacitance values to address different frequency ranges and noise profiles in electronic systems.

Replacement Considerations

Consult official Tusonix cross-reference lists for verified substitutes. Ensure any replacement maintains the same M3x0.5 thread size, 10 pF capacitance, and 200V/10A ratings.
