4401-011LF

Overview

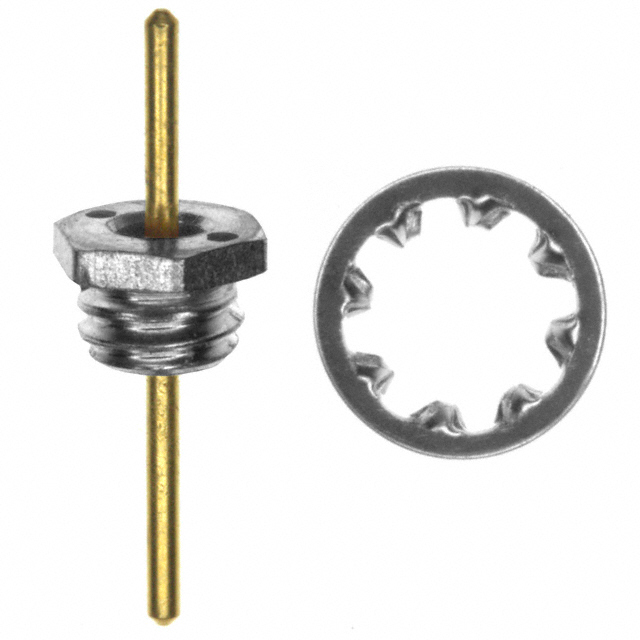

The 4401-011LF is an EMI feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 50,000 pF (0.05 µF) with a rated voltage of 50V and a maximum DC current rating of 10 A. The component utilizes an axial bushing package design. It operates within a temperature range of -55°C to +125°C. This filter type is designed for electromagnetic interference suppression in electronic circuits.

Feature Summary

• Provides electromagnetic interference filtering through feedthrough capacitor technology
• Supports high direct current loads up to 10 Amperes
• Operates reliably across extended industrial temperature ranges

Applications

• Electromagnetic interference suppression in electronic systems
• Power line filtering applications requiring high current handling
• Industrial equipment protection against electrical noise

Procurement Notes

Verify the specific manufacturer part number 4401-011LF against official Tusonix or CTS documentation to confirm technical specifications. Ensure compatibility with system voltage and current requirements before integration. Check for RoHS compliance status if required by project standards. Confirm packaging details such as bulk quantities from authorized distributors.

Selection Notes

Select this component when a feedthrough capacitor with 50,000 pF capacitance and 50V rating is required. Consider the axial bushing form factor for panel mounting or chassis penetration applications. Evaluate the 10 A current rating against circuit load demands. Verify thermal performance within the specified -55°C to +125°C operating range.

Part Context

This component belongs to the Tusonix EMI Feedthrough Filters product line, specifically the 4401 series. These filters are engineered for robust noise suppression in demanding environments. The axial bushing style allows for secure mechanical attachment while providing electrical isolation and filtering capabilities for power and signal lines.

Replacement Considerations

Consult official Tusonix or CTS catalogs for verified substitute part numbers. Cross-reference specifications including capacitance, voltage rating, current handling, and physical dimensions. Ensure any replacement maintains equivalent electromagnetic interference suppression performance and mechanical fit.
