Product Detailed Parameters
- Description：CAP FEEDTHRU 50V AXIAL
- Series：4402
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Tray
- Voltage - Rated：50V
- Current：10:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial, Bushing
- Size / Dimension：0.156" Dia x 0.333" L (3.96mm x 8.45mm)
- Capacitance：-
- Tolerance：-
- DC Resistance (DCR) (Max)：-
- Insertion Loss：47dB @ 100MHz
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：6-32
Download product information
Overview

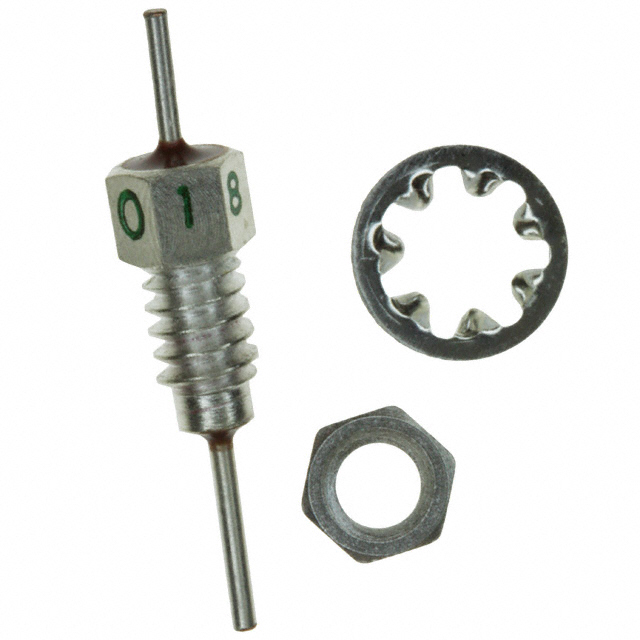

The 4402-018LF is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 0.1 uF and a voltage rating of 50 V. The component operates within a temperature range of -55°C to +125°C. Physical dimensions include a length of 0.82 in, diameter of 0.156 in, and height of 0.35 in. It utilizes a 6-32 UNC-2A thread size for mounting.
Feature Summary
- Provides electromagnetic interference suppression through axial bushing construction
- Designed for high-temperature stability across a wide operational range
- Utilizes threaded mounting interface for secure panel integration
Applications
- Power supply input filtering
- Signal line noise reduction
- Electronic equipment chassis grounding
Procurement Notes
Verify the specific manufacturer part number against official Tusonix or CTS documentation to ensure authenticity. Confirm that the 6-32 UNC-2A thread specification matches your mechanical design requirements. Check for RoHS compliance status in the latest datasheet before finalizing procurement decisions.
Selection Notes
Select this component when a 0.1 uF capacitance value is required for EMI filtering applications. Ensure the system voltage does not exceed the 50 V rating. Verify that the operating environment stays within the specified -55°C to +125°C temperature limits for reliable performance.
Part Context
This component belongs to the 4402 series of EMI feedthrough filters produced by Tusonix. These filters are designed for use in environments requiring robust noise suppression. The series offers various capacitance values and voltage ratings to suit different circuit protection needs.
Replacement Considerations
Consult official Tusonix documentation for verified substitute part numbers. Do not assume cross-compatibility with other series without confirming electrical and mechanical specifications.
