4403-033LF

Overview

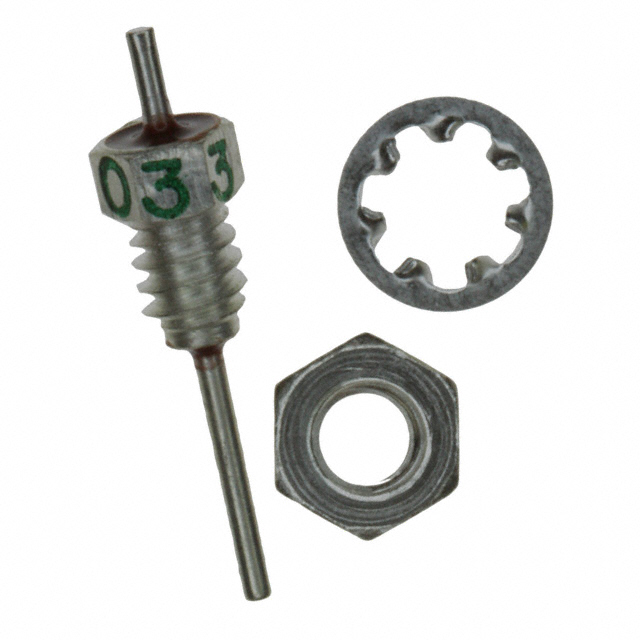

The 4403-033LF is a feedthrough capacitor from the Tusonix 4403 series, designed for EMI suppression. It features a capacitance of 2700 pF with a tolerance of -20% to +80%. Rated at 100 V and capable of handling 10 A current, it operates within a temperature range of -55°C to 125°C. The component utilizes an axial bushing package with 4-40 thread specifications. Dimensions are 0.125 inches in diameter by 0.215 inches in length (3.18 mm x 5.47 mm). Insertion loss is specified as 25 dB at 100 MHz.

Feature Summary

• Provides effective electromagnetic interference (EMI) and radio frequency interference (RFI) suppression through feedthrough architecture.
• Supports high current loads up to 10 A while maintaining stable performance across a wide industrial temperature range.
• Features a threaded axial bushing design for secure panel mounting and reliable electrical connections.

Applications

• EMI/RFI suppression in electronic circuits
• Power line filtering applications
• Panel-mounted filter installations requiring threaded interfaces

Procurement Notes

Verify the specific suffix requirements when ordering, as the base part number may have variations. Confirm that the 4-40 thread specification matches your panel cutout requirements. Ensure the 100 V rating and 10 A current capacity meet your circuit's operational demands. Check RoHS compliance status if required for your assembly process, as documentation indicates potential non-compliance for this specific variant.

Selection Notes

Select this component when a feedthrough capacitor with axial threading is required for panel mounting. The 2700 pF value suits specific filtering needs where higher capacitance than standard bypass capacitors is necessary. Consider the 10 A current rating for power line applications. Verify that the 4-40 thread size aligns with existing hardware or panel designs before finalizing the selection.

Part Context

This component belongs to the Tusonix 4403 series of feedthrough capacitors. The series offers various capacitance values and voltage ratings, all sharing similar axial bushing form factors. These components are manufactured by Tusonix, a subsidiary of CTS Electronic Components, specializing in EMI/RFI filtering solutions for demanding environments.

Replacement Considerations

Public confirmed substitute part numbers were not identified in the provided source material. Cross-referencing should be performed using key parameters: 2700 pF capacitance, 100 V rating, 10 A current, and 4-40 threaded axial bushing package.

FAQ

What is the insertion loss specification for the 4403-033LF?

The insertion loss is specified as 25 dB at 100 MHz.

What are the physical dimensions of the 4403-033LF?

The component has a diameter of 0.125 inches (3.18 mm) and a length of 0.215 inches (5.47 mm).

Does the 4403-033LF support high current applications?

Yes, it is rated for a maximum current of 10 A.
