4403-037LF

Overview

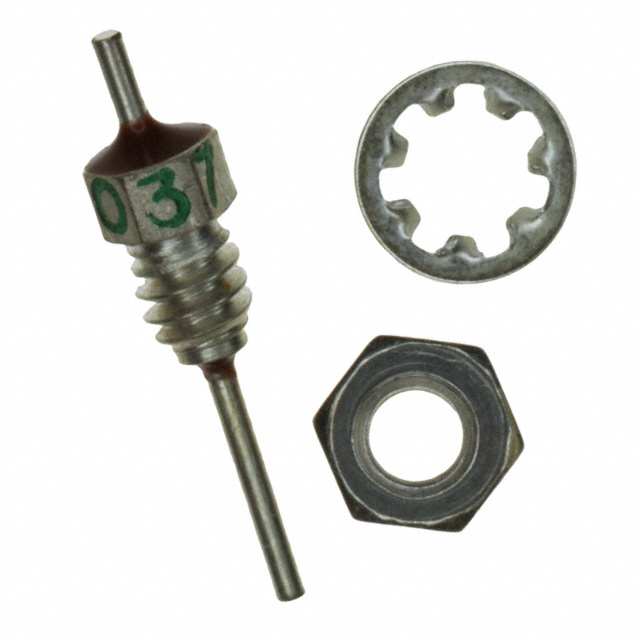

The 4403-037LF is an EMI feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 1000 pF and a voltage rating of 200 V at 125°C. The component supports a current rating of 10 A and operates within a temperature range of -55°C to +125°C. It utilizes an axial bushing package with dimensions of 0.125 inches in diameter and 0.215 inches in length. The unit includes 4-40 thread specifications for mounting.

Feature Summary

• Provides electromagnetic interference filtering through feedthrough capacitor architecture
• Features axial bushing installation for secure panel or chassis mounting
• Maintains electrical performance across extended industrial temperature ranges

Applications

• Electromagnetic interference suppression in electronic enclosures
• Power line filtering for sensitive instrumentation
• Signal integrity protection in communication equipment

Procurement Notes

Verify the specific suffix requirements against the official datasheet to ensure compliance with RoHS standards, as indicated by the LF designation. Confirm that the 4-40 thread size matches the mechanical design of the target enclosure. Ensure the 200V rating and 10A current capacity align with the circuit's operational limits before finalizing procurement orders.

Selection Notes

Select this component when high-frequency noise attenuation is required on lines carrying moderate currents. The axial bushing form factor is suitable for direct panel penetration. Compare the 1000 pF capacitance value against system impedance requirements to ensure effective filtering without excessive signal loading. Verify thermal stability needs against the specified operating temperature range.

Part Context

This component belongs to the 4403 series of EMI feedthrough filters from Tusonix. These devices are designed for robust noise suppression in harsh environments. The series offers various capacitance values and voltage ratings to suit different circuit protection needs while maintaining consistent mechanical mounting standards.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's catalog for cross-reference options if alternative sourcing is required.
