443665806

Overview

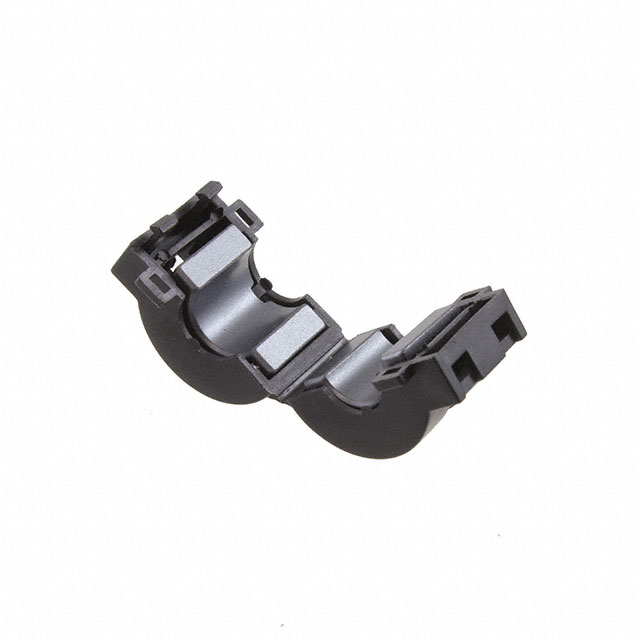

Fair-Rite Products Corp. part number 443665806 is a hinged, snap-on free hanging ferrite core designed for electromagnetic interference suppression. It utilizes Material 43 and provides an impedance of 88 Ohms at 100 MHz. The component features a circular cross-section with an internal diameter of 0.374 inches (9.50 mm) to accommodate cables. External dimensions are specified as 1.035 inches wide by 0.433 inches high (26.29 mm x 11.00 mm), with a total length of 0.843 inches (21.41 mm).

Feature Summary

• Hinged snap-on design allows for easy installation onto existing cables without disconnection.
• Utilizes Material 43 composition for effective broadband noise attenuation.
• Free-hanging configuration enables flexible mounting on round cables or wire bundles.

Applications

• Suppression of common mode noise on round cables and bundled wires.
• EMI filtering in electronic equipment harnesses.
• Signal integrity enhancement for data and power lines.

Procurement Notes

Verify the specific material grade and impedance tolerance against the official Fair-Rite datasheet before procurement. Confirm that the cable diameter falls within the 0.100 inch to 1.000 inch range to ensure proper fit. Check for RoHS compliance status if required by your manufacturing standards.

Selection Notes

Select this component when a non-invasive solution for cable noise reduction is required. Ensure the target cable diameter does not exceed the maximum internal dimension. Consider Material 43 characteristics for the specific frequency range of interference present in the application environment.

Part Context

This component belongs to the Round Cable Snap-It™ series manufactured by Fair-Rite Products Corp. These assemblies are engineered specifically for controlling impedances on round cables. The product line focuses on providing controlled impedance values for effective electromagnetic interference mitigation in various industrial and commercial applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with any alternative components based on identical impedance specifications and physical dimensional constraints.
