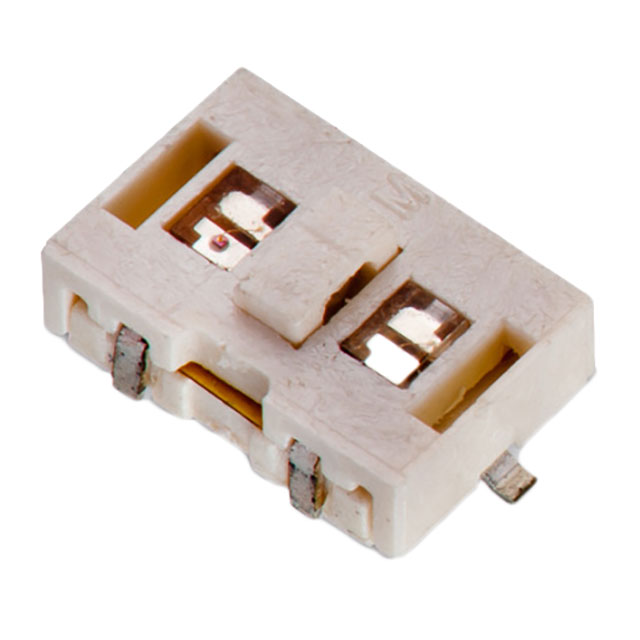

444VR21025816

Product Detailed Parameters

• Description：SWITCH TACTILE SPST-NO 0.05A 12V
• Series：WS-TASL
• Mfr：Würth Elektronik
• Package：Tape & Reel (TR),Cut Tape (CT)
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 12VDC
• Actuator Type：Rectangular Button
• Mounting Type：Surface Mount
• Actuator Height off PCB, Vertical：2.50mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：Gull Wing
• Outline：6.80mm x 4.50mm
• Illumination：Illuminated
• Illumination Type, Color：LED, Green/Red
• Illumination Voltage (Nominal)：1.95, 2.1 VDC
• Operating Force：160gf
• Ingress Protection：-
• Features：-
• Operating Temperature：-40°C ~ 85°C
