446164151

Overview

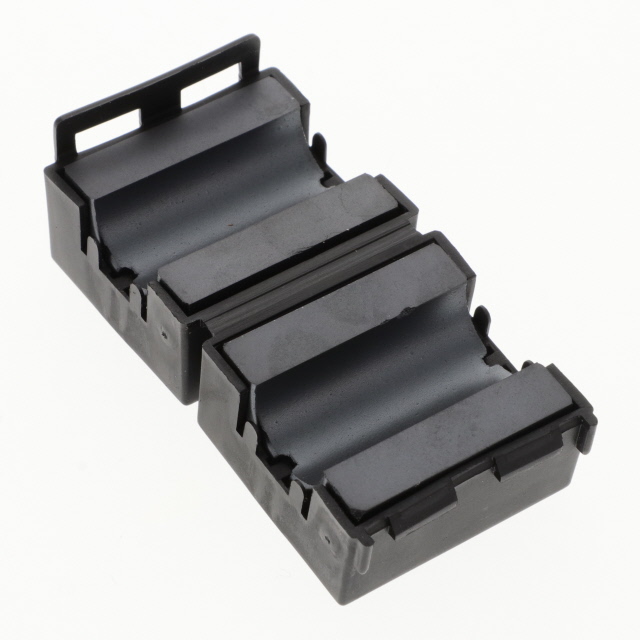

Fair-Rite Products Corp. part number 446164151 is a hinged, snap-on ferrite core designed for cable and wiring applications. It provides an impedance of 225 Ohms at 100 MHz. The component features a circular shape with a free-hanging installation type. Internal dimensions include an inner diameter of 0.514 inches (13.06 mm). External dimensions are specified as 1.142 inches in width by 0.583 inches in height (29.01 mm x 14.81 mm).

Feature Summary

• Hinged snap-on design allows for easy installation around existing cables without disconnection.
• Solid construction provides effective electromagnetic interference suppression.
• Free-hanging configuration enables flexible mounting on wires and harnesses.

Applications

• Electromagnetic interference suppression on cables and wiring
• Noise filtering for electronic equipment harnesses

Procurement Notes

Verify the exact material composition and specific impedance tolerances against the official Fair-Rite datasheet before procurement. Confirm that the hinged mechanism integrity meets your mechanical requirements. Ensure the inner diameter accommodates the target cable bundle size without excessive clearance or tight fit. Cross-reference the RoHS compliance status with current regulatory standards for your region.

Selection Notes

Select this component when rapid field installation is required due to its snap-on hinge design. Choose based on the 225 Ohm impedance at 100 MHz to match the noise frequency spectrum. Ensure the physical dimensions fit within the available space constraints of the cable routing path. Verify compatibility with the cable outer diameter to ensure secure retention.

Part Context

This part belongs to the Fair-Rite Cable Ferrites category, specifically utilizing the Snap-It assembly technology. These components are engineered for controlled impedance performance on round cables. The product line focuses on providing accessible EMI solutions for pre-existing wiring systems where traditional clamp-ons might be difficult to install.

FAQ

What is the inner diameter of the 446164151 ferrite core?

The inner diameter is 0.514 inches (13.06 mm).

Does the 446164151 have a split or hinged design?

Yes, it features a hinged snap-on design for easy installation around cables.
