Overview

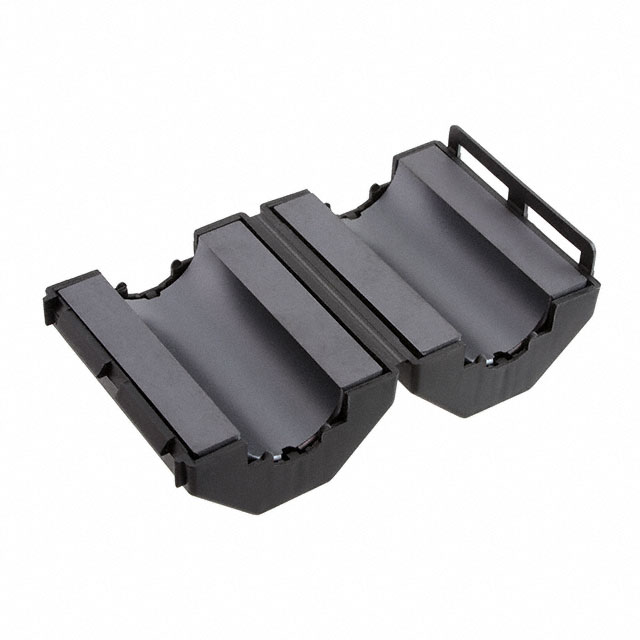

Fair-Rite part number 446176451 is a split-core ferrite assembly designed for electromagnetic interference suppression. It utilizes Material 46, providing an impedance of 416 ohms at 25 MHz and 300 MHz. The unit features a round cable core design with an internal diameter of 18 mm, accommodating cables ranging from 2.5 mm to 25.4 mm in diameter. Physical dimensions include a length of 38.6 mm and a height of 38.3 mm.

Feature Summary

• Split-core snap-it design allows installation on existing cables without disconnection
• Material 46 composition provides high impedance characteristics for EMI suppression
• Round geometry accommodates bundled wires and various cable diameters

Applications

• Electromagnetic interference suppression components
• Cable and wiring noise reduction
• Bundled wire protection

Procurement Notes

Verify the specific impedance values and material designation against the official Fair-Rite datasheet before integration. Confirm that the 18 mm inner diameter matches the target cable bundle size. Ensure the split-core mechanism integrity is maintained during handling to preserve magnetic circuit continuity.

Selection Notes

Select this component when retrofitting EMI suppression onto installed cabling is required. The split-core architecture eliminates the need to disconnect wires. Material 46 is suitable for applications requiring significant attenuation at 25 MHz and 300 MHz frequencies.

Part Context

This assembly belongs to the Round Cable Snap-It series manufactured by Fair-Rite Products Corp. These units are engineered specifically for controlling impedances in round cables and bundled wires. They serve as modular solutions for managing conducted emissions in electronic systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
