Headers, Receptacles, Female Sockets Overview

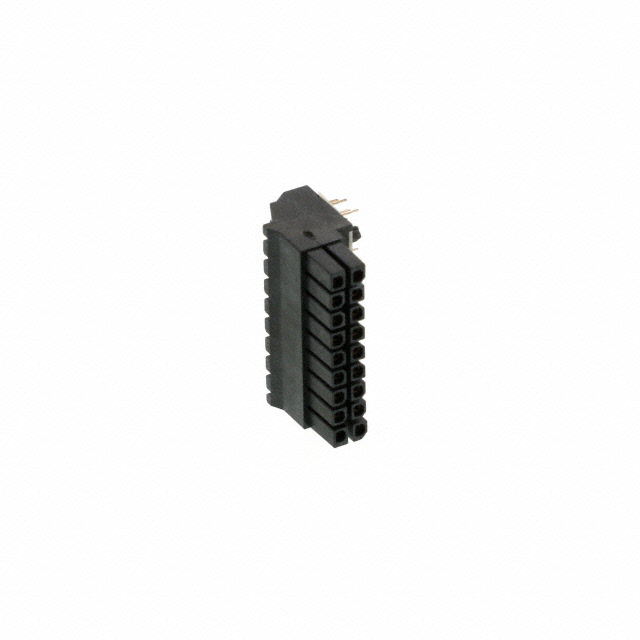

The Molex 44764-1802 is a Micro-Fit BMI receptacle header featuring a dual-row, right-angle configuration with press-fit plastic pegs. It utilizes 0.38µm gold selective plating on contacts and is constructed from liquid crystal polymer (LCP) housing in black. The component carries a UL 94 V-0 flammability rating and supports a current rating of 8.5 A with tin contact material options available in the series.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row right-angle receptacle header design for space-efficient PCB mounting
• Gold selective plating on contacts to ensure reliable signal transmission
• Press-fit plastic pegs provide secure mechanical retention during assembly

Headers, Receptacles, Female Sockets Applications

• High-density data communication equipment interconnects
• Automotive engine and infotainment system connections
• Industrial control board signal routing

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific contact plating thickness and material composition against the official datasheet, as variations exist within the Micro-Fit BMI series. Confirm that the right-angle orientation and dual-row pitch match the target PCB footprint requirements before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when high signal integrity is required due to the gold selective plating option. Ensure the LCP housing material meets thermal stability needs for the operating environment. The right-angle form factor is suitable for applications requiring compact vertical clearance on the printed circuit board.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Micro-Fit BMI family, designed for high-reliability applications in automotive and industrial sectors. The series emphasizes signal integrity through specialized plating options and robust housing materials like LCP, catering to the demand for durable connections in demanding electronic environments.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official Molex documentation for direct cross-reference part numbers. Verify pin count, row configuration, and mounting style compatibility before substituting with alternative headers from the same product family.
