450-10-252-00-106101

Headers, Male Pins Overview

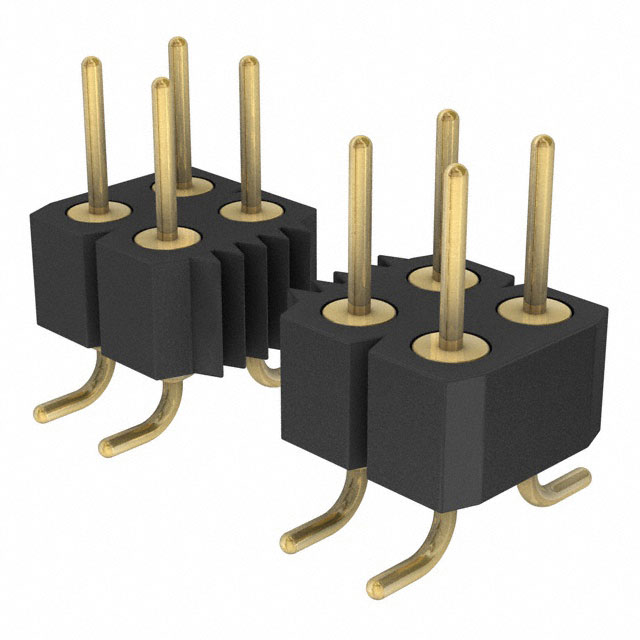

The Preci-Dip 450-10-252-00-106101 is a surface-mount header connector from the 450 series, designed for board-to-board applications. It features 52 positions with a 0.100-inch (2.54mm) pitch and two rows of male pins. The contacts are made of brass with gold plating, ensuring reliable signal transmission. Rated for 3A current and 150VDC, it operates within a temperature range of -55°C to 125°C. The housing is black PCT material, UL94 V-0 rated, providing robust insulation and fire resistance for high-density electronic assemblies.

Headers, Male Pins Feature Summary

• Surface-mount design for automated PCB assembly
• Gold-plated brass contacts for corrosion resistance
• High-density two-row configuration
• UL94 V-0 flame retardant insulation

Headers, Male Pins Applications

• High-density board-to-board interconnects
• Industrial control systems
• Telecommunications equipment
• Consumer electronics modules

Headers, Male Pins Procurement Notes

Verify the specific contact plating thickness and insulation height against the official datasheet before integration. Confirm that the surface-mount footprint matches the manufacturer's recommended land pattern to ensure solder joint integrity during reflow processes. Check for RoHS compliance status if required by project specifications.

Headers, Male Pins Selection Notes

Select this component when a high-pin-count, two-row header is required for space-constrained designs. The gold plating offers superior durability compared to tin variants in harsh environments. Ensure the operating voltage does not exceed 150VDC and current load remains within the 3A rating per contact for long-term reliability.

Headers, Male Pins Part Context

This part belongs to the Preci-Dip 450 series, which specializes in surface-mount headers. The series offers various pin counts and row configurations to support diverse density requirements. The 450-10 suffix typically indicates gold-plated contacts, distinguishing it from tin-plated counterparts in the same physical form factor.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 52-position, two-row SMD headers with 2.54mm pitch from manufacturers such as Samtec or Molex. Verify mechanical dimensions, especially insulation height and tail length, to ensure compatibility with existing PCB silkscreen and clearance constraints.
