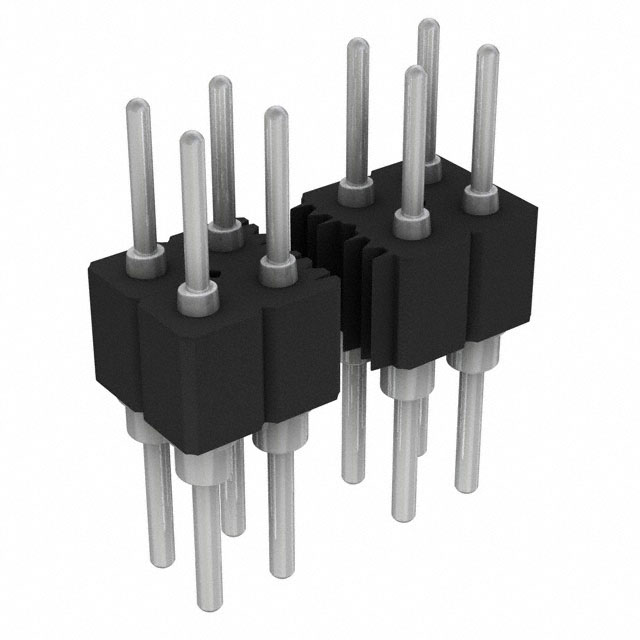

451-10-246-00-017101

$21.76

Description：CONN HEADER VERT 46POS 2.54MM
Series：451
Mfr：Preci-Dip
Package：Bulk

SKU:7b37087abfcb Category: Headers, Male Pins Brand: Preci-Dip

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

451-10-246-00-017101 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Preci-Dip. Its product description is CONN HEADER VERT 46POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 451-10-246-00-017101

Description：CONN HEADER VERT 46POS 2.54MM
Series：451
Mfr：Preci-Dip
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：46
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.118" (3.00mm)
Contact Length - Post：0.126" (3.20mm)
Overall Contact Length：1.323" (33.60mm)
Insulation Height：0.110" (2.79mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Gold
Contact Material：Brass
Insulation Material：Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：150VDC

Headers, Male Pins datasheet and documents for 451-10-246-00-017101

451-10-246-00-017101

Headers, Male Pins Overview

The Preci-Dip 451-10-246-00-017101 is a vertical board-to-board header connector featuring 46 positions arranged in two rows. It utilizes a 0.100-inch (2.54mm) pitch and employs male pin contacts with gold plating for reliable signal transmission. Designed for through-hole mounting, the unit incorporates a push-pull fastening mechanism to secure mating connections. The assembly uses black PCT insulation rated UL94 V-0, supporting operation within a temperature range of -55°C to 125°C under 150VDC and 3A ratings.

Headers, Male Pins Feature Summary

Push-pull fastening mechanism ensures secure mating engagement
Gold-plated male pins provide durable contact surfaces
Vertical orientation facilitates direct board-to-board integration

Headers, Male Pins Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Automotive electronic module assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number against official Preci-Dip documentation to confirm configuration details. Ensure compatibility with mating connectors regarding pitch and row alignment. Check environmental certifications such as RoHS compliance if required for the target application. Confirm that the push-pull locking style matches the mechanical design constraints of the assembly.

Headers, Male Pins Selection Notes

Select this component when a high-density two-row header with positive locking is required. The 2.54mm pitch suits standard PCB layouts while the push-pull feature reduces manual insertion force. Evaluate thermal and current ratings against circuit demands. Consider the vertical profile for space-constrained enclosures requiring direct stacking or adjacent board placement.

Headers, Male Pins Part Context

This model belongs to the Preci-Dip 451 series of board-to-board headers. The series is characterized by its robust construction and versatile positioning options. The 451-10 base designation indicates a two-row configuration with specific terminal lengths. Variations in the suffix define the pin count and termination style, allowing customization for diverse electronic packaging needs.
