45AYP6C

Overview

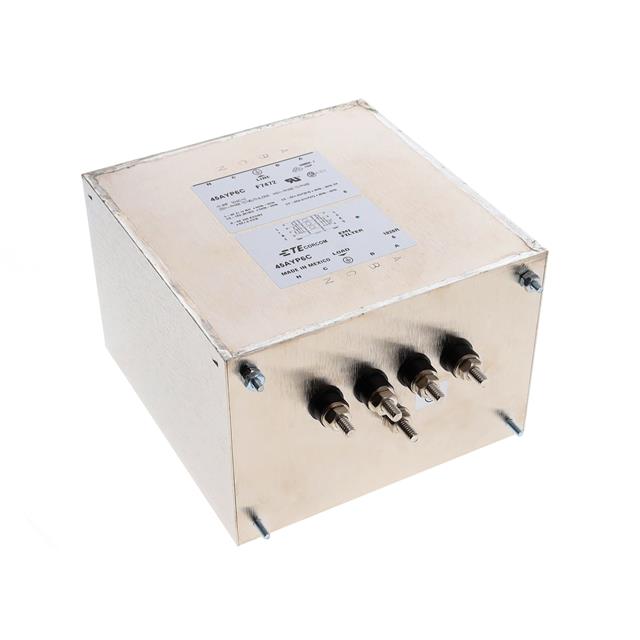

The TE Connectivity Corcom 45AYP6C is a three-phase (Wye) EMC/RFI power line filter designed for high-current applications. It features a 45 A current rating and operates at a voltage of 440 VAC with a frequency of 50 Hz. The unit utilizes a chassis mount style with stud termination, specifically a threaded post configuration. Key electrical specifications include a leakage current of 3.4 mA. This component belongs to the A series, which covers ratings from 20 to 60 Amps, and is compliant with UL standards.

Feature Summary

• Provides two-stage filtering for effective common mode and differential mode noise suppression in Wye configurations
• Engineered for low noise performance using stud ground choke technology
• Supports high current capacity suitable for demanding industrial power conditioning environments

Applications

• Industrial machinery requiring three-phase power conditioning
• Electrical systems needing EMI/RFI suppression for sensitive equipment
• Chassis-mounted power distribution units in industrial settings

Procurement Notes

Verify part authenticity through authorized channels as availability may be restricted. Confirm that the stud termination and chassis mount requirements align with your installation hardware. Ensure the 440 VAC and 45 A ratings match your system's electrical parameters before procurement.

Selection Notes

Select this model for three-phase Wye applications requiring 45 A handling capability. Consider the stud termination type for mounting compatibility. Evaluate the 3.4 mA leakage current against safety regulations. Compare against other A series variants if different current or voltage ratings are needed.

Part Context

This component is part of the TE Connectivity Corcom A series, which offers a range of high-current AC power line filters. The series supports ratings from 20 to 60 Amps, providing standardized solutions for various industrial power quality needs. The 45AYP6C specifically addresses the 45 A requirement within this lineup.

Replacement Considerations

The part number 6609072-3 is an alias for this component. Verify mechanical dimensions and terminal configurations when considering substitutes from other manufacturers to ensure compatibility with existing chassis mounts.
