4600-009LF

Overview

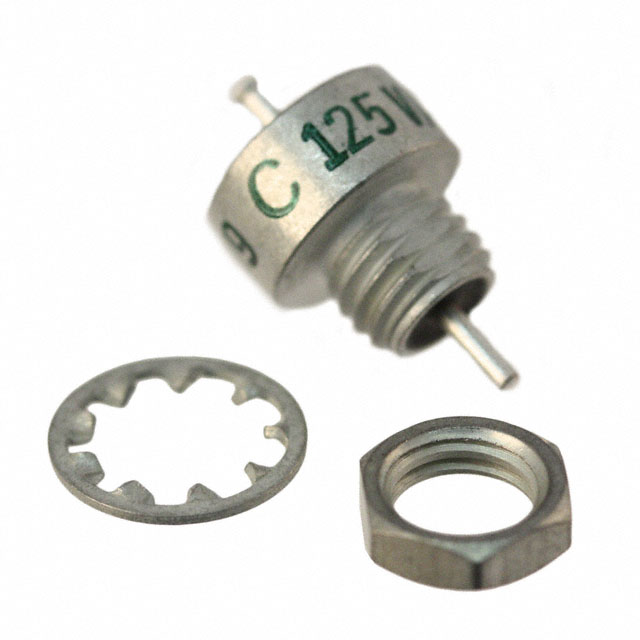

The 4600-009LF is a feedthrough capacitor from the Tusonix 4600 series, rated at 200V with a capacitance of 0.15 µF and a current rating of 15 A. It features an axial bushing package with one turret lead and 1/4"-28 threading. The component operates within a temperature range defined by X7R characteristics and provides 60 dB insertion loss at 1 GHz.

Feature Summary

• Provides high-frequency electromagnetic interference suppression through integrated feedthrough filtering architecture
• Utilizes a threaded bushing mounting style for secure panel integration
• Designed to handle continuous DC current loads up to specified ratings

Applications

• Power supply input filtering in electronic equipment
• Signal line protection against conducted noise
• Panel-mounted EMI suppression applications

Procurement Notes

Verify the specific suffix requirements for RoHS compliance when ordering, as the base part number may differ in environmental certification status. Confirm that the required threading specification matches the installation panel design. Ensure the voltage and current ratings align with the circuit operational parameters before finalizing procurement.

Selection Notes

Select this component when a robust, panel-mount solution is required for filtering power or signal lines. The axial bushing format facilitates direct chassis mounting. Consider the thermal performance limits associated with the dielectric material when designing for high ambient temperatures or high current conditions.

Part Context

This component belongs to the 4600 series of feedthrough capacitors manufactured by Tusonix, a subsidiary of CTS Electronic Components. The series is characterized by its ability to provide effective EMI filtering in compact, mechanically stable packages suitable for industrial and commercial electronics.

FAQ

What is the insertion loss performance of the 4600-009LF?

The component provides an insertion loss of 60 dB at 1 GHz.

What mounting style does the 4600-009LF use?

It uses an axial bushing style with a 1/4"-28 thread specification.
