4600-053LF

Overview

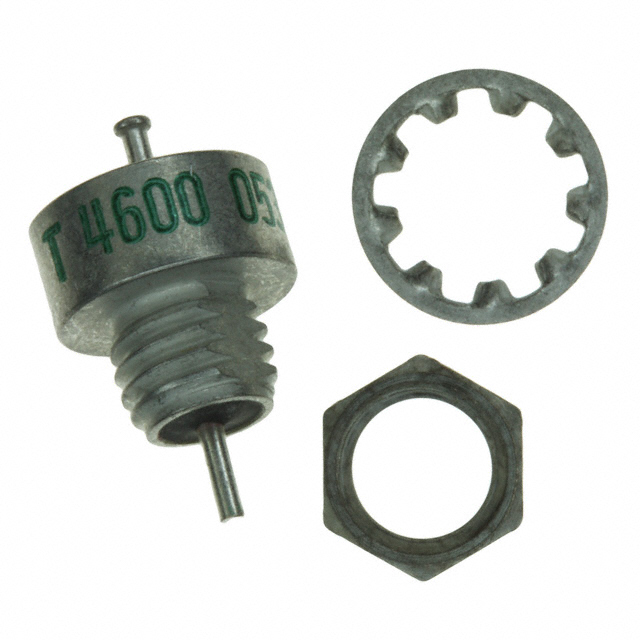

The 4600-053LF is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 1.4 µF and a rated voltage of 50 V. The component supports a maximum DC current of 15 A and operates within a temperature range of -55°C to +125°C. It utilizes an L-filter circuit topology and is housed in an axial package with a diameter of 9.78 mm.

Feature Summary

• Provides electromagnetic interference suppression through integrated L-filter circuitry
• Supports high current loads up to 15 A for power line applications
• Operates reliably across extended industrial temperature ranges

Applications

• Power supply input filtering
• Electromagnetic interference suppression in electronic equipment
• Signal conditioning for sensitive circuits

Procurement Notes

Verify the specific voltage rating requirements against the datasheet specifications before procurement. Confirm that the axial mounting style and physical dimensions align with the target PCB layout or chassis penetration design. Ensure compatibility with the intended operating temperature environment.

Selection Notes

Select this component when a 1.4 µF capacitance value is required for low-pass filtering applications. Consider the 50 V rating and 15 A current capacity to ensure adequate headroom for the specific circuit conditions. Evaluate the axial form factor against available space constraints in the assembly.

Part Context

This component belongs to the 4600 series of EMI feedthrough filters produced by Tusonix. These components are designed for robust noise reduction in demanding environments. The series offers various capacitance and voltage options to suit different power and signal integrity needs.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Cross-reference electrical parameters such as capacitance, voltage rating, and current handling capabilities to ensure functional compatibility.
