4601-000LF

Overview

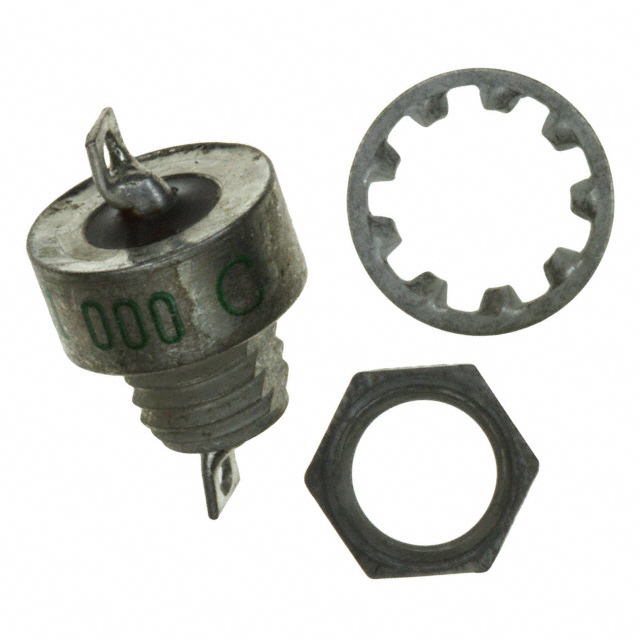

The 4601-000LF is a feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features an axial bushing package with two solder eyelets. The component has a rated voltage of 70V and supports a maximum DC current of 15A. It is designed for electromagnetic interference filtering applications.

Feature Summary

• Axial bushing construction with dual solder eyelets for secure mounting
• Feedthrough design for effective electromagnetic interference suppression
• Capable of handling high direct current loads

Applications

• Electromagnetic interference filtering in electronic circuits
• Power supply input/output stages requiring feedthrough capacitors
• Shielded enclosures utilizing panel-mount bushing configurations

Procurement Notes

Verify the specific manufacturer part number against official Tusonix or CTS documentation to confirm the 70V rating and 15A current capacity. Ensure the axial bushing package with two solder eyelets matches the mechanical requirements of the target assembly. Cross-reference datasheets for precise dimensional tolerances and environmental operating limits before finalizing procurement specifications.

Selection Notes

Select this component when a feedthrough capacitor with a 70V rating and 15A current capability is required. The axial bushing form factor with two solder eyelets is suitable for panel-mounted installations. Consider the physical dimensions and mounting style compatibility with existing chassis designs. Verify that the frequency response characteristics meet the specific noise suppression needs of the application circuit.

Part Context

This component belongs to the Tusonix feedthrough capacitor series, which offers various capacitance values and voltage ratings. The 4601-000LF specifically utilizes an axial bushing configuration, distinguishing it from pill or radial variants within the broader product line. These components are engineered for robust performance in demanding electromagnetic environments.

Replacement Considerations

Consult official Tusonix or CTS substitution guides for verified equivalent part numbers. Ensure any replacement maintains the same 70V rating, 15A current capacity, and axial bushing package with two solder eyelets to preserve mechanical and electrical integrity.
