Product Detailed Parameters
- Description：CAP FEEDTHRU 70V AXIAL
- Series：4601
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Tray
- Voltage - Rated：70V
- Current：15 A
- Operating Temperature：-
- Mounting Type：-
- Package / Case：Axial, Bushing - 2 Solder Eyelets
- Size / Dimension：0.385" Dia x 0.362" L (9.78mm x 9.20mm)
- Capacitance：-
- Tolerance：-
- DC Resistance (DCR) (Max)：-
- Insertion Loss：70dB @ 1GHz
- Temperature Coefficient：X7W
- Ratings：-
- Height (Max)：-
- Thread Size：1/4"-28
Download product information
Overview

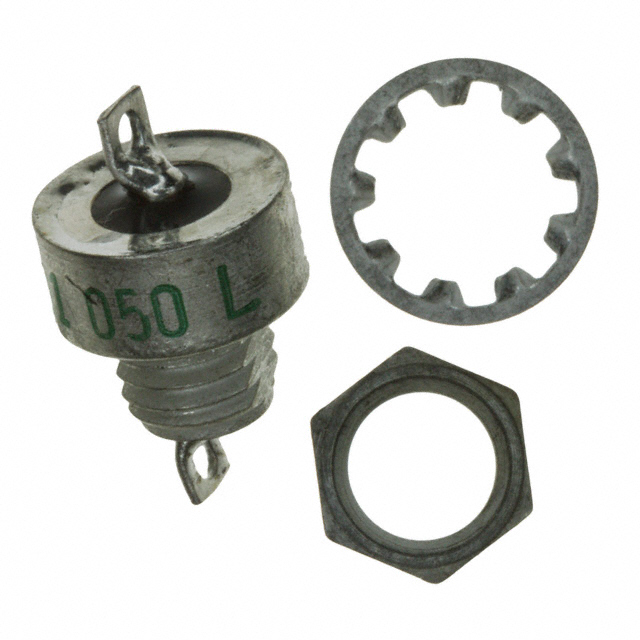

The 4601-050LF is an EMI feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 1.4 uF and a rated voltage of 70V to 100V. The component supports a maximum DC current of 15 A and operates within a temperature range of -55°C to +125°C. It utilizes an axial bushing package with two solder eyelets for mounting.
Feature Summary
- Provides electromagnetic interference suppression through high-capacitance feedthrough design
- Features axial bushing construction with dual solder eyelets for secure panel mounting
- Supports high direct current loads up to 15 A in compact form factor
Applications
- Power supply input filtering
- Electronic equipment chassis grounding
- High-current signal line protection
Procurement Notes
Verify the specific voltage rating requirements against the datasheet, as sources indicate both 70V and 100V ratings. Confirm the axial bushing package dimensions match the enclosure design. Ensure the 15 A current capacity meets the circuit load specifications before finalizing procurement.
Selection Notes
Select this component when high capacitance is required for low-frequency noise attenuation in high-current applications. The axial bushing style is suitable for panel-mounted installations where robust mechanical connection is necessary. Consider the operating temperature range and voltage derating curves for reliable performance under varying environmental conditions.
Part Context
This part belongs to the 4601 series of EMI feedthrough filters from Tusonix/CTS. These components are designed for effective noise suppression in power and signal lines. The series offers various capacitance and voltage options to suit different industrial and commercial electronic filtering needs.
Replacement Considerations
Check for equivalent parts within the 4600 or 4601 series that match the 1.4 uF capacitance and 15 A current rating. Verify package compatibility for axial bushing mounts with dual eyelets before substitution.
