4601-052LF

Overview

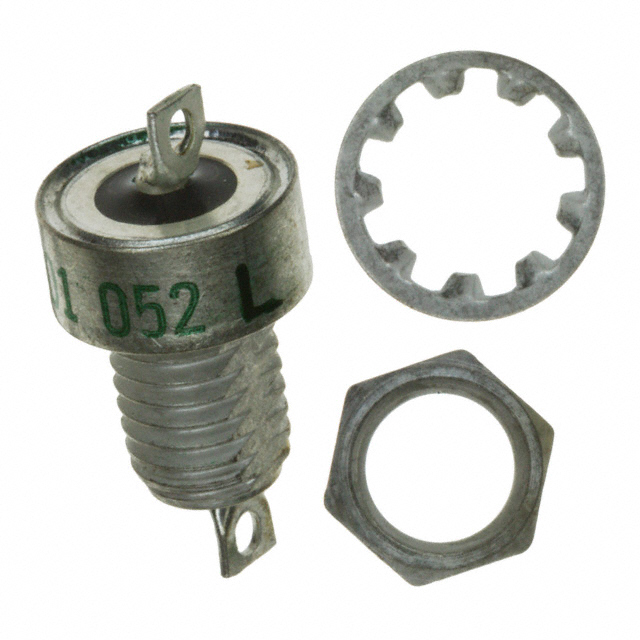

The 4601-052LF is a feed-through capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features an axial bushing package with two solder eyelets for mounting. The component is rated for 70V and supports a maximum current of 15 A. This EMI filter is designed for high-current applications requiring effective noise suppression through its feed-through architecture.

Feature Summary

• Axial bushing construction with dual solder eyelets for secure panel mounting
• Feed-through design for efficient electromagnetic interference suppression
• Rated for 15 A continuous current handling capability

Applications

• Power supply input filtering
• DC bus noise reduction
• Industrial equipment EMI mitigation

Procurement Notes

Verify the specific capacitance value and frequency response characteristics against your circuit requirements, as these parameters are not explicitly detailed in the provided summary data. Confirm that the 70V rating and 15A current capacity align with your system's operational limits. Ensure the axial bushing form factor fits your mechanical enclosure constraints before finalizing procurement.

Selection Notes

Select this component when a robust feed-through solution is needed for moderate voltage (70V) and high current (15A) environments. The axial bushing style with solder eyelets offers distinct mechanical advantages over threaded variants for certain panel layouts. Compare against other 4601 series parts if higher voltage ratings or different capacitance values are required for your specific application.

Part Context

This part belongs to the 4601 series of EMI feed-through filters from Tusonix/CTS. The series typically includes various capacitance and voltage ratings within the same mechanical family. The 4601-052LF specifically targets applications requiring 70V isolation with significant current carrying capacity, distinguishing it from lower current or higher voltage counterparts in the lineup.

Replacement Considerations

Check for direct substitutes within the 4601 series such as the 4601-050LF, which shares similar electrical ratings but may differ in capacitance. Verify mechanical compatibility of the axial bushing and solder eyelet dimensions before substituting.
