4601-053LF

Overview

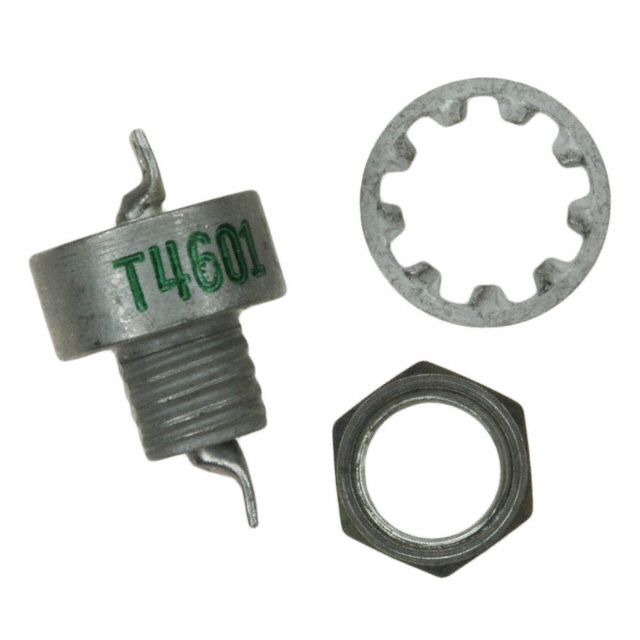

The 4601-053LF is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 1.4 uF and a voltage rating of 250 V. The component supports a maximum DC current of 15 A and operates within a temperature range of -55°C to +125°C. Its physical dimensions include a diameter of 9.78 mm and a length of 0.692 inches (17.58 mm). The unit utilizes a 1/4-28 UNF-2A thread size for mounting.

Feature Summary

• Provides electromagnetic interference suppression through integrated feedthrough filtering architecture
• Supports high direct current loads up to 15 amperes
• Operates reliably in extreme environmental conditions ranging from -55°C to +125°C

Applications

• Electromagnetic compatibility filtering in electronic systems
• Power line conditioning for high-current applications
• Industrial equipment requiring robust EMI protection

Procurement Notes

Verify the specific voltage rating and current capacity against your system requirements before procurement. Confirm the thread size matches your mounting panel specifications. Check the manufacturer's datasheet for detailed electrical characteristics and mechanical drawings to ensure proper integration into your design.

Selection Notes

Select this component when a 1.4 uF capacitance value is required for low-frequency noise attenuation. Ensure the 250 V rating exceeds your circuit's peak voltage. Verify that the 15 A current handling capability meets your load demands. Consider the 1/4-28 UNF-2A threading for compatible panel installation.

Part Context

This part belongs to the 4601 series of EMI feedthrough filters produced by Tusonix. These components are designed for effective noise suppression in power and signal lines. The series offers various capacitance and voltage options to suit different industrial and commercial applications requiring reliable electromagnetic interference mitigation.

Replacement Considerations

Consult official substitution lists or equivalent product catalogs from Tusonix or other authorized manufacturers. Verify that any alternative component matches the 1.4 uF capacitance, 250 V rating, 15 A current capacity, and 1/4-28 UNF-2A thread specification.
