4601-054LF

Overview

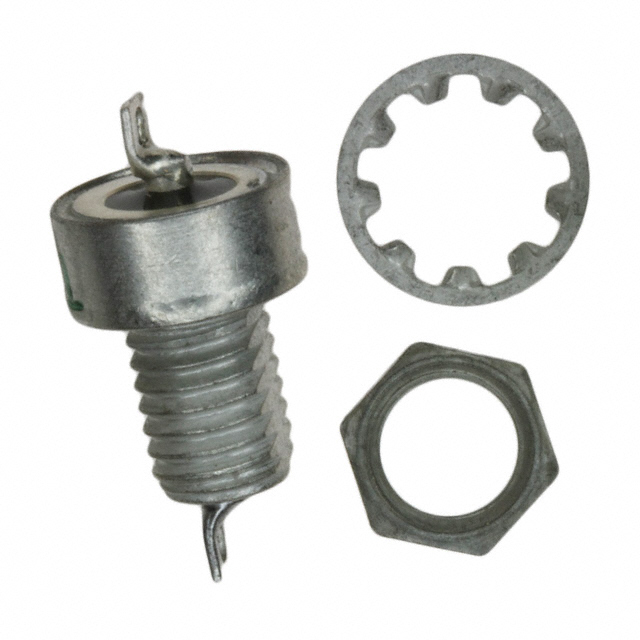

The 4601-054LF is a feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance value of 1.4 µF and a rated voltage of 50 V. The component utilizes an axial leaded package with bushing mounting style and two solder eyelets for secure installation. Designed for electromagnetic interference (EMI) suppression, it operates within a temperature range of -55°C to +125°C. The unit complies with RoHS3 standards and is classified under EAR99 export control regulations.

Feature Summary

• Provides effective electromagnetic interference filtering through high-capacitance feedthrough design
• Features robust axial construction with bushing mount and dual solder eyelets for mechanical stability
• Operates reliably across extended industrial temperature ranges

Applications

• Power supply input filtering in electronic equipment
• Electromagnetic compatibility (EMC) mitigation in industrial systems
• Signal line noise suppression in sensitive instrumentation

Procurement Notes

Verify the specific voltage rating and capacitance tolerance against the official datasheet before integration. Confirm that the axial bushing mounting configuration matches the chassis or panel cutout dimensions. Ensure the solder eyelet termination type is compatible with the assembly process. Cross-reference the manufacturer part number to avoid confusion with similar series components.

Selection Notes

Select this component when high capacitance is required for low-frequency EMI suppression in power lines. The axial bushing form factor is suitable for panel-mounted applications requiring secure grounding. Consider the 50V rating and 1.4µF value relative to the circuit's operating voltage and noise spectrum requirements.

Part Context

This component belongs to the 4601 series of feedthrough capacitors from Tusonix. These parts are engineered for high-performance EMC applications where traditional capacitors may fail due to parasitic inductance. The series offers various capacitance and voltage ratings to suit different filtering needs.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify electrical parameters and physical dimensions carefully if considering alternative manufacturers.
