Product Detailed Parameters
- Description：FILTER RC 47 OHMS/100PF TH
- Series：700
- Mfr：Bourns Inc.
- Package：Bulk
- Type：Low Pass
- Filter Order：1st
- Technology：RC
- Number of Channels：9
- Center / Cutoff Frequency：-
- Attenuation Value：-
- Resistance - Channel (Ohms)：47
- Values：R = 47Ohms, C = 100pF
- ESD Protection：No
- Operating Temperature：-30°C ~ 85°C
- Applications：General Purpose
- Voltage - Rated：50V
- Mounting Type：Through Hole
- Package / Case：10-SIP
- Size / Dimension：0.998" L x 0.150" W (25.35mm x 3.81mm)
- Height：0.335" (8.50mm)
- Current：-
- Grade：-
- Qualification：-
Download product information
Overview

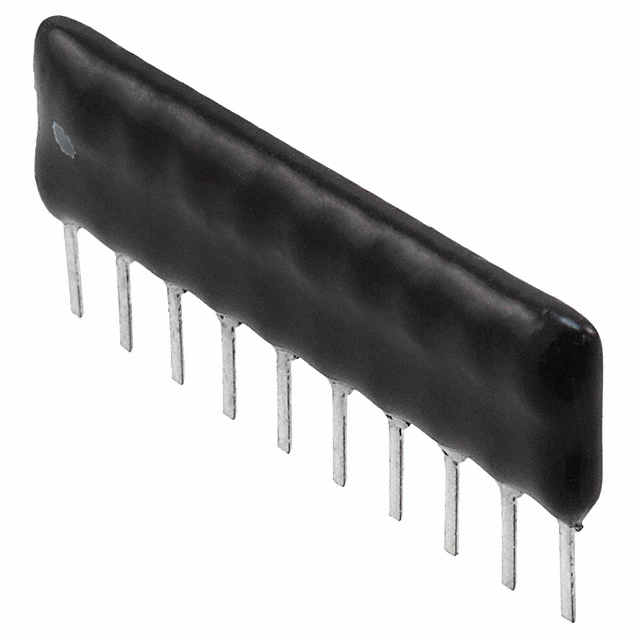

The Bourns 4610H-701-470/101L is a single-function RC terminator network housed in a 10-pin Single Inline Package (SIP) for through-hole mounting. It integrates nine resistor-capacitor elements with a resistance of 47 ohms and capacitance of 100 picofarads. The device operates at a maximum voltage of 50 volts, utilizing C0G dielectric capacitors with ±20% tolerance and resistors featuring ±5% tolerance.
Feature Summary
- Provides low noise termination specifically designed for CMOS applications
- Integrates combined resistors and capacitors within a compact SIP package to save space
- Reduces insertion time during assembly processes
- Undergoes insulation resistance testing to ensure component reliability
Applications
- CMOS circuit termination
- EMI/RFI filtering networks
- Signal line protection circuits
Procurement Notes
Verify the specific suffix configuration against official Bourns documentation to confirm electrical values. Confirm RoHS compliance status and lead times directly with authorized distributors. Ensure the through-hole footprint matches the target PCB design requirements before finalizing procurement orders.
Selection Notes
Select this component when a 10-pin SIP form factor is required for CMOS termination. Verify that the 47-ohm resistance and 100-picofarad capacitance align with the target impedance matching needs. Consider the 50-volt operating limit and C0G temperature stability for the intended environmental conditions.
Part Context
This part belongs to the Bourns 700 Series of RC Terminator Networks. The series offers various pin counts ranging from 4 to 16 pins. These networks are engineered to provide reliable termination solutions while maintaining low noise characteristics for sensitive digital logic interfaces.
FAQ
What is the capacitor dielectric type used in this network?
The capacitors utilize C0G dielectric material, providing stable performance across temperature variations.
How many functional channels does this network contain?
The 4610H-701-470/101L contains one functional unit comprising nine integrated resistor-capacitor elements.
