4700-008MLF

Overview

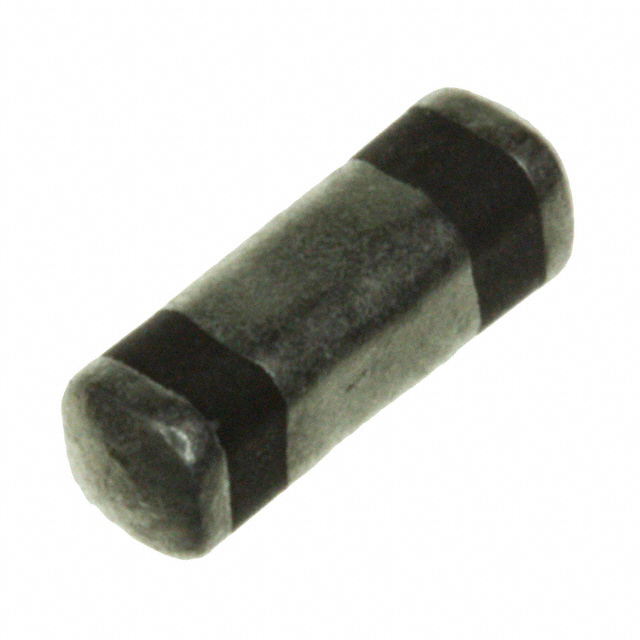

The 4700-008MLF is a surface-mount feedthrough capacitor from the Tusonix 4700 series, designed for EMI/RFI suppression. It features a three-terminal network filter configuration with a capacitance of 4000 pF and a DC voltage rating of 100 VDC. The component supports a current rating of 10 A and operates within a temperature range of 0°C to +85°C. Its compact dimensions are 8 mm in length, with a width and height of 2.29 mm. The device utilizes an X7R dielectric material and offers a tolerance of -20% to +80%. It is available in reel, cut tape, and MouseReel packaging formats.

Feature Summary

• Surface-mount three-terminal architecture facilitates automated assembly and integration into modern electronic systems.
• Feedthrough design provides effective electromagnetic interference and radio frequency interference suppression.

Applications

• EMI/RFI filtering in surface-mount circuit boards
• Power line conditioning for low-voltage DC applications
• Signal integrity protection in compact electronic modules

Procurement Notes

Verify the specific suffix MLF against official datasheets to confirm RoHS compliance status and material composition. Ensure the selected packaging format (reel, cut tape, or MouseReel) matches your manufacturing equipment requirements. Confirm that the operating temperature range of 0°C to +85°C aligns with your system's thermal environment before finalizing procurement.

Selection Notes

Select this component when a surface-mount solution is required for EMI filtering in space-constrained designs. The 4000 pF capacitance and 100 VDC rating suit low-voltage DC power lines. Consider the -20% to +80% tolerance if precise capacitance stability is not critical. Verify that the 10 A current rating meets the load requirements of the application circuit.

Part Context

This part belongs to the Tusonix 4700 series of feedthrough capacitors, manufactured by CTS Electronic Components. The series includes various capacitance values and package types, such as axial and pill configurations. The 4700-008MLF specifically represents the surface-mount variant within this family, offering a compact footprint compared to through-hole alternatives.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer cross-reference guides for potential equivalents based on capacitance, voltage, and package compatibility.

FAQ

What is the maximum operating temperature for the 4700-008MLF?

The maximum operating temperature is +85°C.

Does the 4700-008MLF have a ground terminal?

Yes, it is a three-terminal network filter capacitor with a dedicated ground terminal.
