Product Detailed Parameters
- Description：FILTER LC(PI) 0.1UH/5000PF SMD
- Series：4700
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Low Pass
- Filter Order：3rd
- Technology：LC (Pi)
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：55dB @ 100MHz
- Resistance - Channel (Ohms)：-
- Values：L = 0.1µH, C = 5000pF
- ESD Protection：No
- Operating Temperature：-55°C ~ 125°C
- Applications：General Purpose
- Voltage - Rated：100V
- Mounting Type：Surface Mount
- Package / Case：Pill, Round
- Size / Dimension：0.085" Dia x 0.315" L (2.16mm x 8.00mm)
- Height：-
- Current：10:00 AM
Download product information
Overview

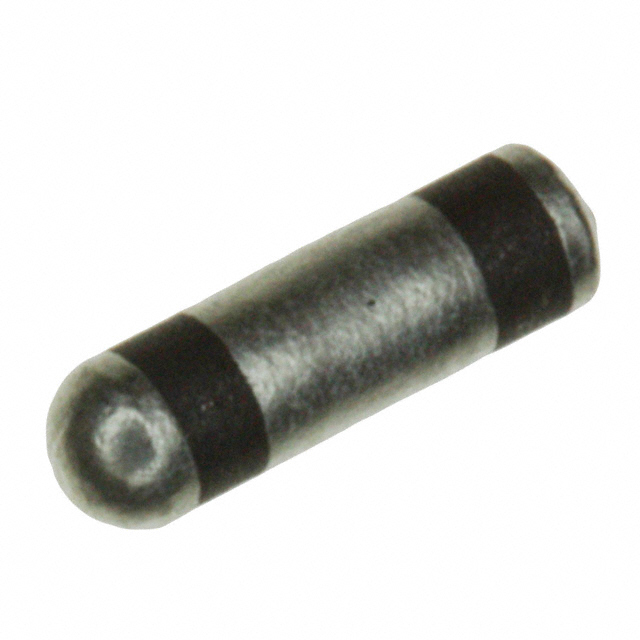

The 4700-056MLF is a surface-mount EMI/RFI feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It belongs to the 4700 series and functions as an LC (Pi) network filter. The component features a capacitance of 5000 pF and an inductance of 0.1 uH. It is designed for high insulation resistance, specified at 10 GOhms. The device utilizes a surface mount package configuration suitable for automated assembly processes.
Feature Summary
- Integrates LC Pi-filter topology combining inductance and capacitance for enhanced noise suppression
- Provides high insulation resistance for reliable signal integrity in sensitive circuits
- Utilizes surface mount technology for compact PCB integration
Applications
- EMI/RFI filtering in electronic assemblies
- Signal line protection in communication equipment
- Power supply noise reduction in industrial electronics
Procurement Notes
Verify the specific suffix MLF against official datasheets to confirm RoHS compliance status and lead times. Confirm that the manufacturer designation aligns with current corporate structures. Ensure compatibility with standard SMT reflow profiles during procurement planning.
Selection Notes
Select this component when a combined LC Pi-filter response is required in a surface-mount form factor. Evaluate the 5000 pF capacitance and 0.1 uH inductance values against circuit impedance requirements. Consider the physical dimensions and thermal characteristics relative to available board space.
Part Context
This part is part of the broader 4700 series of feedthrough capacitors produced by Tusonix under CTS Electronic Components. The series includes various configurations for through-hole and surface-mount applications, offering different capacitance and voltage ratings for diverse filtering needs across industrial and commercial sectors.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and electrical parameters before considering alternative manufacturers or generic equivalents.
