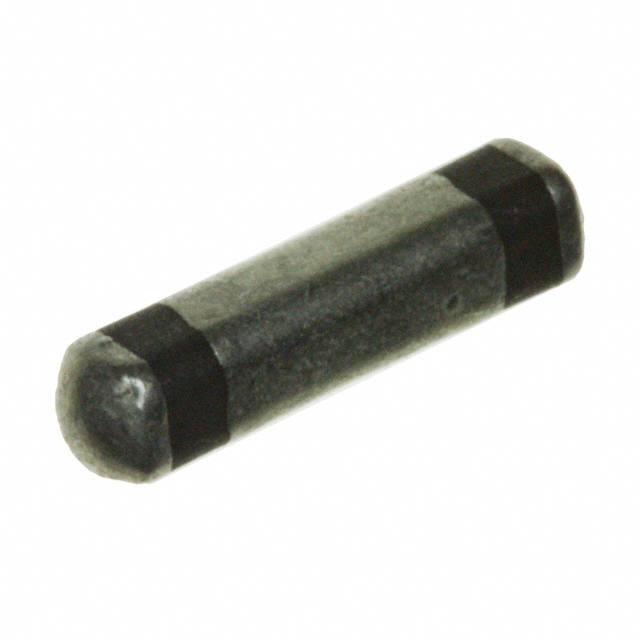

4701-001MLF

Overview

The 4701-001MLF is a surface mount LC (Pi) EMI filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. This third-order low-pass filter features an inductance of 0.1µH and a capacitance of 8200pF. It is rated for 100V DC and supports a current rating of 10A. The component operates within a temperature range of -55°C to +125°C and provides general-purpose electromagnetic interference suppression.

Feature Summary

• Integrates LC Pi topology for third-order low-pass filtering performance
• Provides high current handling capability at 10A
• Designed for surface mount assembly processes

Applications

• General purpose EMI suppression
• Power line filtering in electronic circuits
• Signal integrity protection in sensitive electronics

Procurement Notes

Verify the manufacturer designation as Tusonix, a subsidiary of CTS Electronic Components, when sourcing this component. Confirm that the specific part number 4701-001MLF matches the required 0.1µH inductance and 8200pF capacitance values. Ensure compatibility with surface mount assembly requirements and check for any specific packaging constraints such as MouseReel availability before procurement.

Selection Notes

Select this component for applications requiring a third-order low-pass filter with a 10A current rating. The 100V DC voltage rating and wide operating temperature range from -55°C to +125°C make it suitable for robust general-purpose environments. Consider the surface mount package type for automated assembly integration.

Part Context

This component belongs to the family of feed-through capacitors and EMI filters produced by Tusonix under CTS Electronic Components. It utilizes a square pillar design optimized for surface mount technology. The product serves as a passive filter solution for managing electromagnetic interference in power and signal lines.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
