475167281

Overview

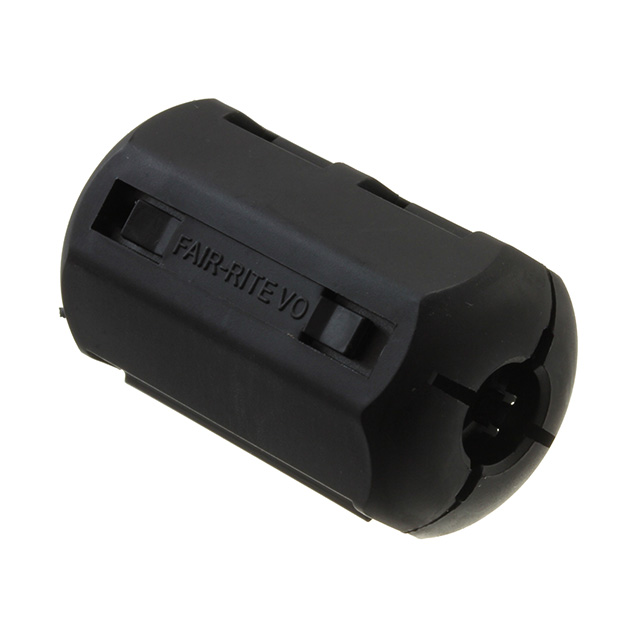

Fair-Rite 475167281 is a split core ferrite bead designed for round cables with a maximum diameter of 9.85 mm (0.388 inches). Constructed from Fair-Rite Material 75, it provides high impedance in the frequency range of 200 kHz to 30 MHz. The component features a snap-on design for easy installation and removal without disconnecting wires. It achieves an impedance of 62 ohms within its specified operating band.

Feature Summary

• Snap-on split core design allows installation on existing cable assemblies without disconnection
• Material 75 composition provides high magnetic permeability for effective noise suppression
• Optimized for round cable geometries up to 9.85 mm diameter

Applications

• Electromagnetic interference suppression on data and power cables
• Noise filtering in electronic equipment wiring harnesses
• Common mode choke applications for signal integrity enhancement

Procurement Notes

Verify that the target cable diameter does not exceed 9.85 mm to ensure proper fit. Confirm Material 75 specifications align with the required frequency range of 200 kHz to 30 MHz. Check RoHS compliance status if environmental regulations apply to the final assembly.

Selection Notes

Select this part when retrofitting ferrite beads onto assembled cables is necessary. Material 75 is suitable for higher frequency noise compared to standard materials. Ensure the snap mechanism can fully close around the cable to maintain consistent magnetic coupling.

Part Context

This component belongs to the Snap-It series of split core ferrites manufactured by Fair-Rite Products Corp. These components are engineered for post-assembly integration, offering flexibility in manufacturing and maintenance processes where fixed cores are impractical.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Verify compatibility based on inner diameter, material composition, and impedance characteristics before substituting.
