49U9U01600BMCAKFGCA-B

Crystals Overview

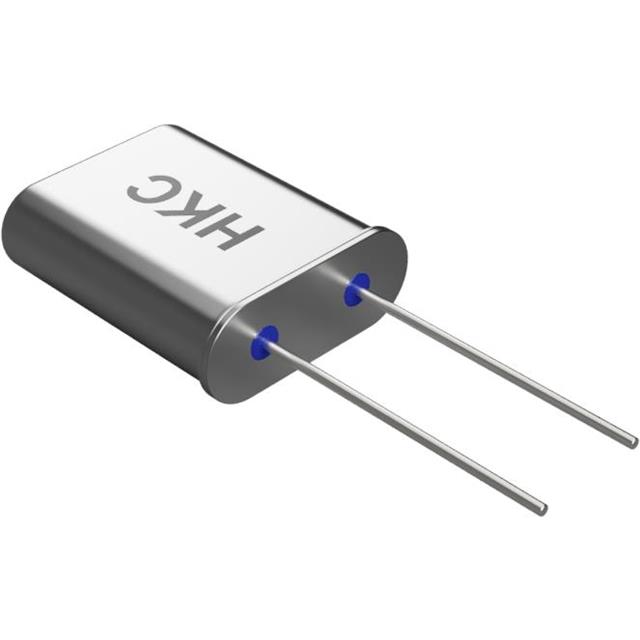

The HKC 49U9U01600BMCAKFGCA-B is a 16 MHz crystal oscillator designed for precision timing applications. It operates within a temperature range of -40°C to +85°C and features a frequency tolerance of ±30ppm. The component utilizes an HC-49/US package with a 20pF load capacitance and 30 Ohms series resistance, ensuring stable performance in various electronic circuits.

Crystals Feature Summary

• Precision frequency stability with ±30ppm tolerance
• Wide operating temperature range from -40°C to +85°C
• Standard HC-49/US package for reliable mounting

Crystals Applications

• General-purpose timing circuits
• Microcontroller clock sources
• Communication equipment oscillators

Crystals Procurement Notes

Verify the exact suffix 'B' against manufacturer documentation to confirm specific manufacturing lot or variant details. Ensure compatibility with existing circuit load capacitance requirements before integration. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Crystals Selection Notes

Select this component when a standard 16 MHz frequency is required for embedded systems. Consider the HC-49/US form factor for through-hole assembly needs. Evaluate the ±30ppm tolerance against system jitter specifications to ensure adequate timing accuracy for the intended application environment.

Crystals Part Context

This crystal belongs to the broader family of HC-49/US packaged resonators commonly used in consumer electronics and industrial control systems. It serves as a fundamental passive component for generating reference clocks in digital logic circuits, distinct from active oscillator modules.

Crystals Replacement Considerations

Substitute only with identical 16 MHz crystals sharing the HC-49/US package, 20pF load capacitance, and ±30ppm tolerance. Verify that alternative manufacturers meet the same electrical specifications and physical dimensions to maintain board layout integrity.
