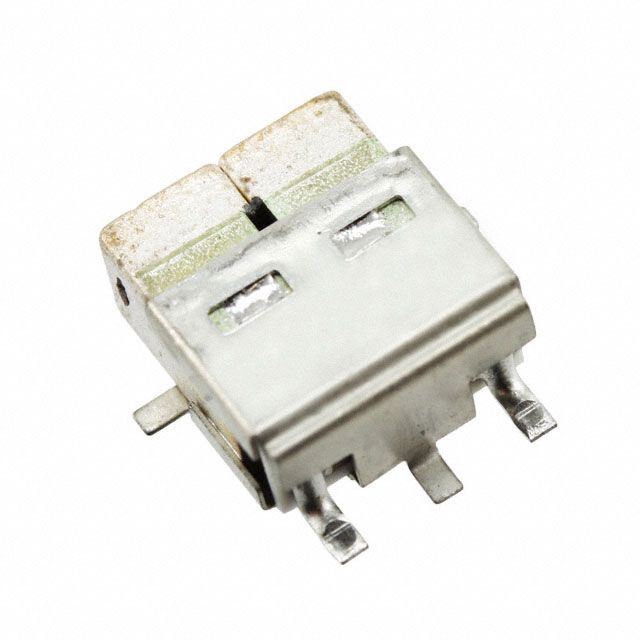

4DFA-947E-10=P

$3.63

Description：RF FILTER BANDPASS 947.5MHZ 5SMD
Series：4DFA
Mfr：Toko America Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e136cbd03d5f Category: RF Filters Brand: Toko America Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BANDPASS 947.5MHZ 5SMD
Series：4DFA
Mfr：Toko America Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Frequency：947.5MHz Center
Bandwidth：12.5MHz
Filter Type：Band Pass
Ripple：1dB
Insertion Loss：2.5dB
Mounting Type：Surface Mount
Package / Case：5-SMD, Flat Leads
Size / Dimension：0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max)：0.197" (5.00mm)

Download product information

4DFA-947E-10=P

Overview

The 4DFA-947E-10=P is a surface-mount bandpass RF filter manufactured by Toko America Inc. It operates at a center frequency of 947.5 MHz with a bandwidth of 12.5 MHz. The component features an insertion loss of 2.5 dB and ripple of 1 dB. It utilizes a 5-SMD, flat lead package for mounting.

Feature Summary

Surface-mount design for automated assembly
Bandpass filtering capability in the UHF range
Compact 5-SMD flat lead package

Applications

Radio frequency signal processing
Wireless communication systems
UHF receiver front-ends

Procurement Notes

Verify the exact part number including the suffix =P against official Toko America Inc. documentation to ensure correct specifications. Confirm availability status as some listings indicate obsolete status. Cross-reference electrical parameters such as center frequency and insertion loss with the specific datasheet before procurement.

Selection Notes

Select this component when a precise 947.5 MHz center frequency is required with a narrow 12.5 MHz bandwidth. Ensure the application supports SMD mounting and the 5-lead package form factor. Verify that the 2.5 dB insertion loss meets system sensitivity requirements.

Part Context

This part belongs to the 4DFA series of two-pole SMD filters from Toko America Inc., designed for frequencies between 700 and 2500 MHz. It serves as a specialized passive component for RF filtering applications within this broad frequency range.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult manufacturer documentation for direct equivalents or compatible alternatives within the same series.
