5-102570-2

Headers, Male Pins Overview

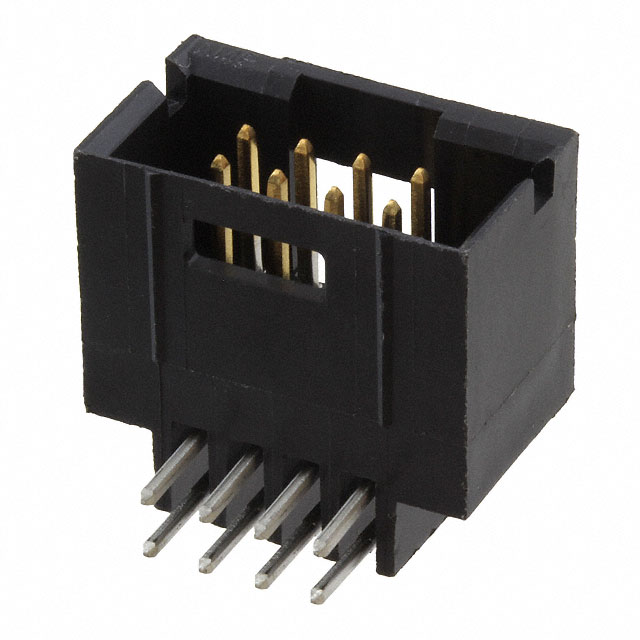

The 5-102570-2 is a rectangular header connector from the AMPMODU MOD II series, manufactured by TE Connectivity. It features an 8-position configuration with a 0.100 inch (2.54 mm) pitch. The component utilizes right-angle through-hole termination for secure PCB mounting. Contacts are designed as male pins, suitable for board-to-board or cable-to-board applications. The housing provides shrouded guidance to ensure proper alignment during mating.

Headers, Male Pins Feature Summary

• Right-angle orientation facilitates compact circuit board layouts and space-constrained designs.
• Shrouded housing design ensures precise alignment and prevents misinsertion of mating connectors.
• Through-hole solder termination offers robust mechanical stability and reliable electrical connections.

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic assemblies
• Cable-to-board signal routing in industrial control systems
• General-purpose signal transmission in consumer electronics

Headers, Male Pins Procurement Notes

Verify the specific revision status and RoHS compliance documentation prior to procurement, as manufacturing updates may occur. Confirm that the right-angle form factor aligns with the mechanical constraints of the target PCB layout. Ensure compatibility with standard reflow soldering profiles for through-hole components. Cross-reference the official datasheet for any recent product change notifications affecting material composition or packaging specifications.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for 8-channel signal paths. The 2.54 mm pitch is standard for general-purpose interconnects, ensuring broad availability of mating counterparts. Consider the mechanical height and board clearance requirements associated with the right-angle lead configuration. This part is suitable for applications where vertical space is limited but horizontal routing flexibility is needed.

Headers, Male Pins Part Context

This connector belongs to the AMPMODU MOD II family, a widely used line of rectangular interconnects known for reliability. The series supports various positions and orientations, making it versatile for diverse electronic designs. The 5-102570-2 specifically addresses the need for angled connections within this established ecosystem, maintaining compatibility with other MOD II series components.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 8-position, 2.54 mm pitch right-angle headers from compatible series. Verify pin count, pitch, and termination type before substitution. Alternative manufacturers may offer equivalent specifications, but mechanical dimensions must be validated against the original footprint.
