5-103325-4

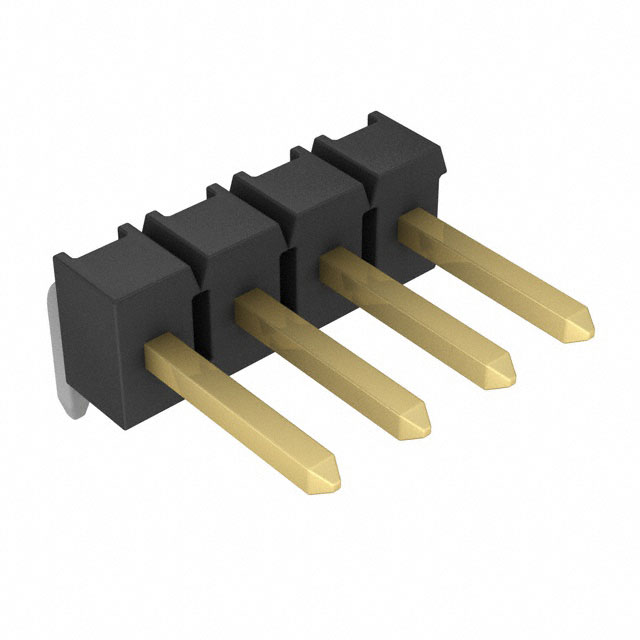

5-103325-4 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER R/A 4POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 5-103325-4

• Description：CONN HEADER R/A 4POS 2.54MM
• Series：AMPMODU Mod II
• Mfr：TE Connectivity AMP Connectors
• Package：Bulk,Bulk
• Connector Type：Header, Breakaway
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：4
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Unshrouded
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.230" (5.84mm)
• Contact Length - Post：0.120" (3.05mm)
• Overall Contact Length：-
• Insulation Height：0.138" (3.50mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：15.0µin (0.38µm)
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Thermoplastic
• Features：-
• Operating Temperature：-65°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：3A
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 5-103325-4
