5-103635-9

Headers, Male Pins Overview

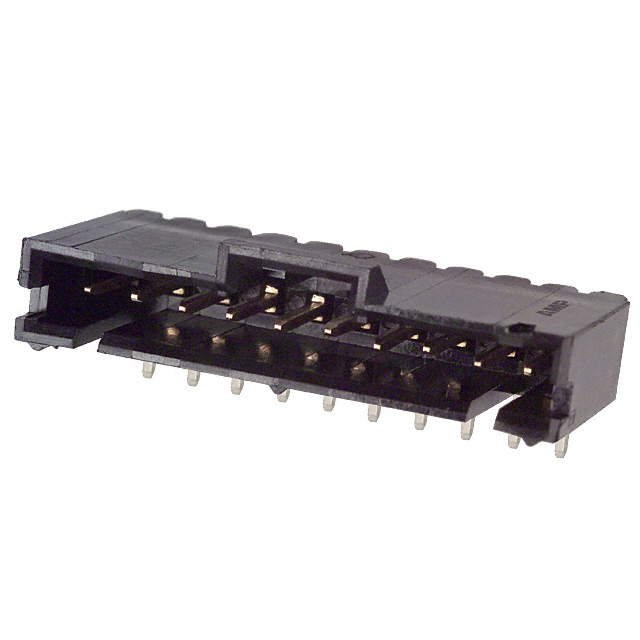

The 5-103635-9 is a male pin header from the AMPMODU MTE series, manufactured by TE Connectivity AMP Connectors. It features a 20-position single-row configuration with a 0.100-inch (2.54mm) pitch. Designed for board-to-board or cable applications, this connector utilizes right-angle through-hole solder termination and includes a latch holder for secure mating. The contacts are constructed from brass with gold plating, housed in black thermoplastic insulation rated UL94 V-0. It operates within a temperature range of -65°C to 105°C and supports a current rating of 3A.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting design for PCB integration
• Gold-plated brass contacts ensuring reliable electrical performance
• Integrated latch holder mechanism for secure connection retention

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board assemblies
• General electronic equipment
• Telecommunications infrastructure

Headers, Male Pins Procurement Notes

Verify the specific part number against official TE Connectivity documentation to confirm exact pin count and orientation. Ensure compatibility with mating receptacles regarding latch mechanisms and housing dimensions. Cross-reference thermal ratings and current capacity requirements with application specifications before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle male header with latch retention is required for 2.54mm pitch systems. Consider the 3A current rating and operating temperature range relative to environmental conditions. Verify that the PCB footprint matches the through-hole pin layout and that sufficient clearance exists for the right-angle profile.

Headers, Male Pins Part Context

This component belongs to the AMPMODU MTE series, a widely used rectangular connector system known for its versatility in various industrial and commercial applications. The series offers multiple configurations including headers, receptacles, and housings, facilitating flexible interconnection solutions across different industries.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 20-position, 2.54mm pitch right-angle male headers from the same manufacturer or compatible third-party suppliers. Ensure mechanical fit, electrical ratings, and latch functionality match the original specification.
