Product Detailed Parameters
- Description：FERRITE BEAD 0805
- Series：*
- Mfr：TE Connectivity Passive Product
- Package：Bulk
- Filter Type：-
- Number of Lines：-
- Impedance @ Frequency：-
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Ratings：-
- Operating Temperature：-
- Package / Case：-
- Mounting Type：-
- Height (Max)：-
- Size / Dimension：-
- Features：-
Download product information
Overview

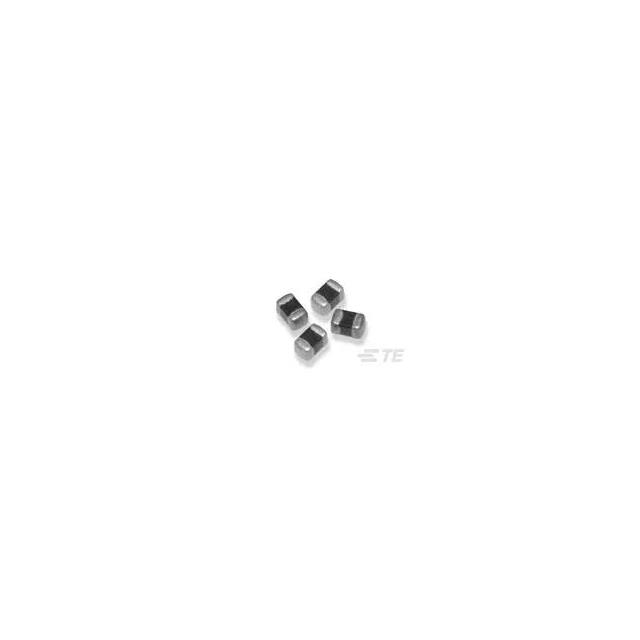

The 5-1624117-3 is a ferrite bead from the TE Connectivity Passive Product BMB series, designed for surface mount applications. It utilizes a 0805 (2012 metric) package with dimensions of 2.00mm length and 1.20mm width. The component provides an impedance of 120 Ohms at 100 MHz and supports a maximum current rating of 300mA. Its DC resistance is specified at a maximum of 300 milliohms. The device operates within a temperature range of -55°C to 125°C.
Feature Summary
- Provides high impedance to suppress electromagnetic interference in single-line circuits
- Designed for compact surface mount integration on printed circuit boards
- Constructed to withstand wide operational temperature extremes
Applications
- High-speed data line filtering
- Power supply noise suppression
- Signal integrity enhancement in digital circuits
Procurement Notes
Verify the specific suffix and revision level against the manufacturer's latest documentation before procurement. Confirm that the required impedance characteristics align with the target frequency spectrum of the application. Ensure compatibility with standard reflow soldering profiles for the 0805 package type to maintain electrical performance and mechanical reliability during assembly.
Selection Notes
Select this component when a low-profile surface mount solution is required for EMI suppression in space-constrained designs. Evaluate the 300mA current rating to ensure it exceeds the maximum operating current of the protected circuit. Consider the 120 Ohm impedance value relative to the noise frequencies present in the system to determine effectiveness. Verify thermal management requirements given the 300 milliohm DC resistance.
Part Context
This part belongs to the BMB series of ferrite beads manufactured by TE Connectivity Passive Product. These components are engineered for general-purpose noise suppression in electronic assemblies. The 0805 footprint allows for automated placement in high-volume manufacturing environments. The series is characterized by stable impedance performance across defined frequency ranges.
Replacement Considerations
Check for MFR recommended substitutes such as BMC2AY0120AN if availability is constrained. Ensure any replacement maintains identical impedance, current rating, and package dimensions.
