5-2394521-4

Headers, Male Pins Overview

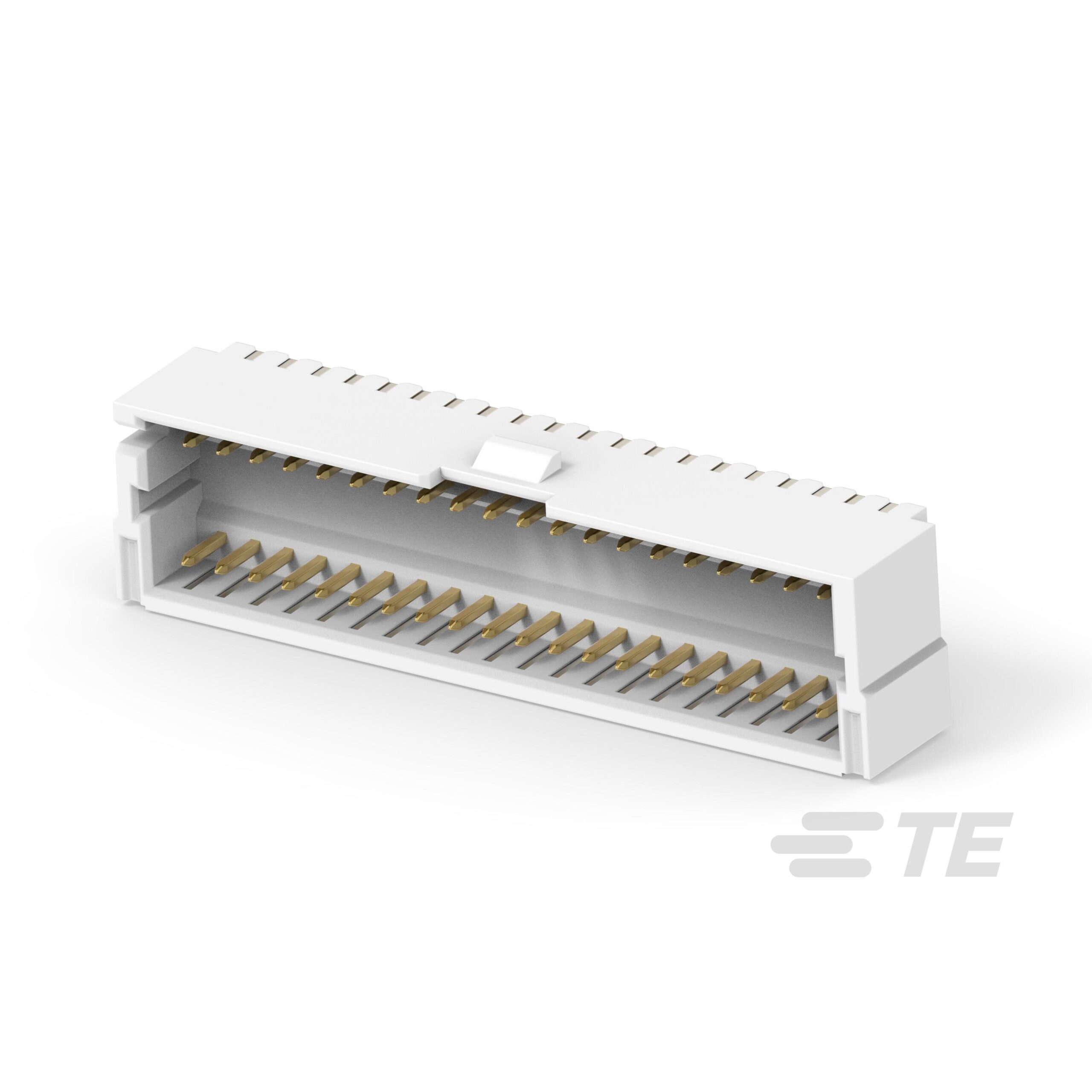

The TE Connectivity Linx 5-2394521-4 is a surface mount right-angle header connector featuring 40 positions with a 1.50mm pitch. It utilizes square male pins with tin plating on copper alloy contacts and thermoplastic insulation. The component operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact board integration
• Dual-row locking interconnect system for secure mating
• Tin-plated square male pin contacts

Headers, Male Pins Applications

• High-performance electronic assemblies requiring dense I/O
• Board-to-cable or board-to-board connections
• Automotive and industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity documentation to ensure compatibility with mating headers. Confirm that the surface mount footprint matches the target PCB layout. Check for RoHS compliance status in the latest datasheet before finalizing procurement specifications.

Headers, Male Pins Selection Notes

Select this component when a high-density, right-angle connection is required. Ensure the mating counterpart is a compatible dual-row header from the same HPI series. Verify that the 1.50mm pitch aligns with the system's spatial constraints and signal routing requirements.

Headers, Male Pins Part Context

This connector belongs to the High Performance Interconnect (HPI) family, designed for demanding applications. It provides reliable electrical performance in space-constrained environments. The product line emphasizes durability and consistent contact integrity across various industrial sectors.

Headers, Male Pins Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Generic equivalents may not match the precise locking mechanism or dimensional tolerances required for proper assembly.
