5003.0111.1

Overview

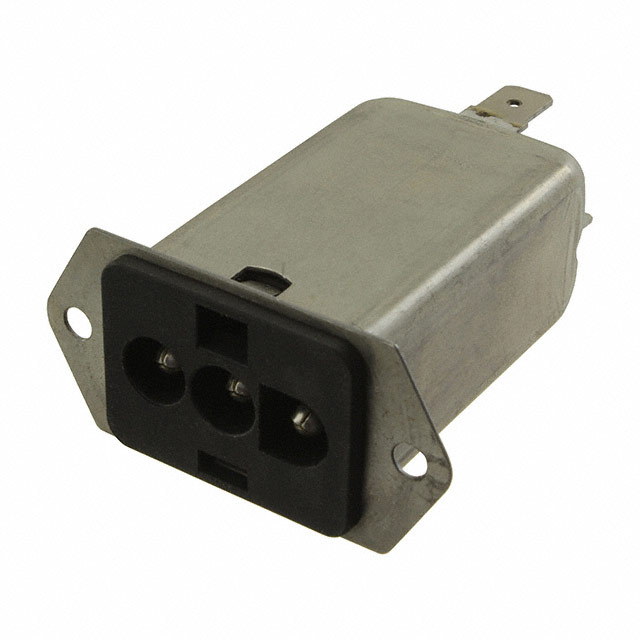

The SCHURTER 5003.0111.1 is a single-phase EMC/EMI line filter module designed for panel mounting. It features a C14 connector style and utilizes quick connect termination for circuit integration. The component is rated for a maximum current of 3 A and operates at voltages up to 125 VDC. It incorporates a single-stage filtering architecture to suppress electromagnetic interference. The unit supports front or rear side mounting configurations, facilitating flexible installation in space-constrained equipment enclosures.

Feature Summary

• Single-stage EMC/EMI filtering architecture
• Quick connect termination method
• C14 connector interface
• Front or rear side mounting capability

Applications

• Power supply input stages
• Electronic equipment requiring EMI suppression
• Panel-mounted power entry modules

Procurement Notes

Verify the specific voltage rating requirements against the datasheet, as the part is specified for 125 VDC operation. Confirm that the quick connect terminal type matches the PCB or wire harness design. Ensure the C14 inlet compatibility aligns with the mating plug specifications for the intended application environment.

Selection Notes

Select this component when a compact, single-phase filter solution is required for low-voltage DC applications. The quick connect termination simplifies assembly compared to soldered alternatives. Evaluate the physical dimensions and mounting orientation constraints to ensure the front or rear side mount option fits the enclosure design effectively.

Part Context

This component belongs to the Schurter power line filter module series. It serves as an interface between the power source and sensitive electronic loads. The design prioritizes ease of integration into panel-mounted systems while providing essential noise reduction capabilities for compliant operation.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
