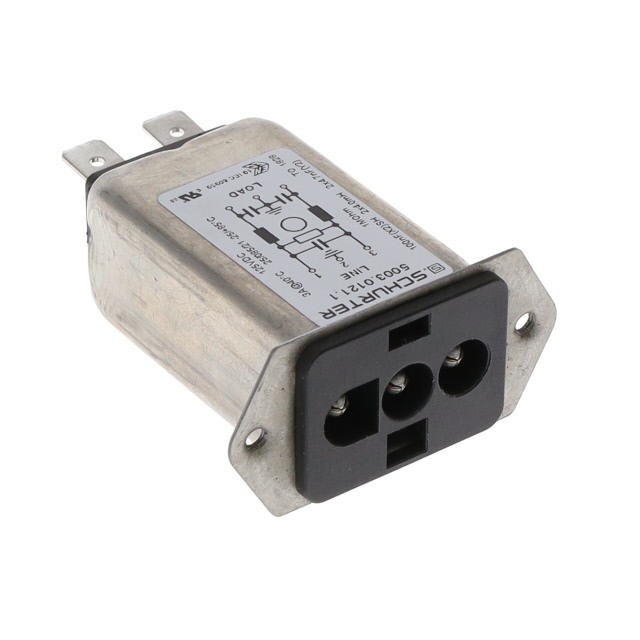

5003.0121.1

Description：LINE FILTER 125VDC 3A PANEL MNT
Series：5003
Mfr：SCHURTER Inc.
Package：Bulk

SKU:0b42541ef20f Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125VDC 3A PANEL MNT
Series：5003
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：125V
Voltage - Rated AC：-
Current：3:00 AM
Frequency - Operating：-
Applications：Signal
Approval Agency：cURus, ENEC, UL, VDE
Operating Temperature：-25°C ~ 85°C
Mounting Type：Panel Mount
Termination Style：Quick Connect
Inductance：4mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5003.0121.1

Overview

The SCHURTER 5003.0121.1 is a single-phase EMC/EMI line filter module designed for AC power entry applications. It features a current rating of 3 A and operates at a voltage of 125 VAC. The unit incorporates a single-stage filtering configuration to suppress electromagnetic interference. Electrical termination is achieved via quick connect terminals, facilitating integration into compact assemblies. The component is engineered for reliable noise reduction in low-power electronic systems.

Feature Summary

Single-stage EMI/RFI suppression for clean power delivery
Quick connect terminal interface for simplified assembly
Compact form factor suitable for space-constrained designs

Applications

Consumer electronics power supplies
Small appliance control boards
Low-power industrial equipment input stages

Procurement Notes

Verify the specific datasheet revision to confirm pinout compatibility and mounting orientation. Ensure the operating environment temperature range aligns with the component's rated specifications. Confirm that the quick connect terminal dimensions match the mating connector requirements on the target PCB or harness.

Selection Notes

Select this module when a single-stage filter is sufficient for the application's noise profile. The 3 A rating limits suitability to low-power circuits; higher current demands require alternative Schurter series. Verify that the 125 VAC rating meets the local mains voltage standards of the deployment region.

Part Context

This component belongs to the Schurter 5003 series of AC power entry modules. The series typically includes variants with different current ratings, switching functions, and fuse integrations. The 5003.0121.1 represents a basic filtered inlet variant without integrated switching or fusing capabilities.

Replacement Considerations

Cross-reference with other 5003 series variants such as 5003.1121.1 for similar footprint but potentially different electrical characteristics. Verify mechanical fit and terminal type compatibility before substituting.
