5003.015B.1

Overview

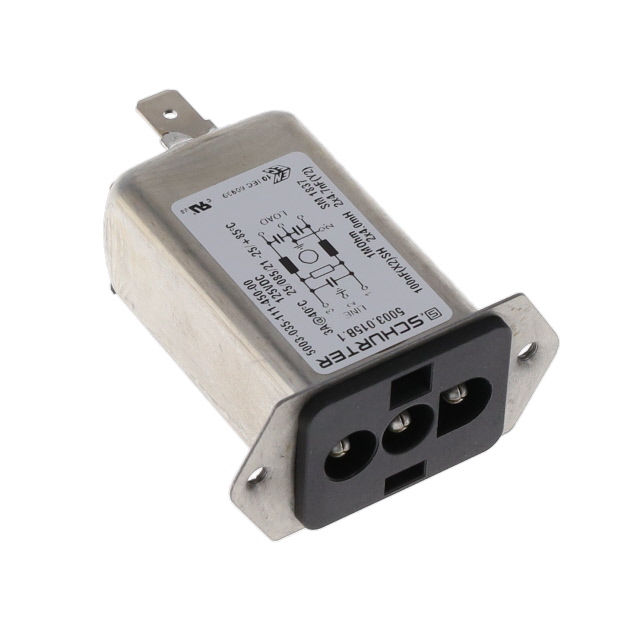

The SCHURTER Inc. 5003.015B.1 is a single-phase EMI/RFI line filter power entry module rated for 3 A at 125 VAC. It features a single-stage filtering design intended for electromagnetic interference suppression in AC power lines. The component utilizes PC pin termination for printed circuit board mounting and supports both front- and rear-side installation configurations. Designed to meet ECO Design standards, it serves as an appliance inlet with integrated filtering capabilities.

Feature Summary

• Integrates single-stage EMI/RFI filtering within a compact power entry module form factor
• Supports flexible mechanical integration through selectable front or rear side mounting orientations
• Complies with ECO Design requirements for energy-efficient electronic equipment applications

Applications

• Consumer appliances requiring AC power line noise suppression
• Industrial equipment needing integrated EMC filtering at the power input stage
• Medical devices adhering to strict electromagnetic compatibility standards

Procurement Notes

Verify that the specific application voltage does not exceed the 125 VAC rating. Confirm that the PCB layout accommodates the PC pin terminal spacing and mounting style. Ensure the system current load remains within the 3 A continuous limit to maintain safe operation and prevent thermal degradation of the filter components.

Selection Notes

Select this model when a combined power inlet and EMI filter solution is required for low-voltage AC systems. It is suitable for designs prioritizing space efficiency by integrating filtering functions directly into the power entry point. Consider the mounting orientation constraints during the mechanical design phase to ensure proper enclosure integration.

Part Context

This component belongs to Schurter's power entry connector portfolio, specifically designed for appliance inlets. It combines standard power connection functionality with active electromagnetic interference suppression. The product line targets markets requiring compliant power interfaces for consumer and industrial electronics without separate external filter modules.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
