5003.016B.1

Overview

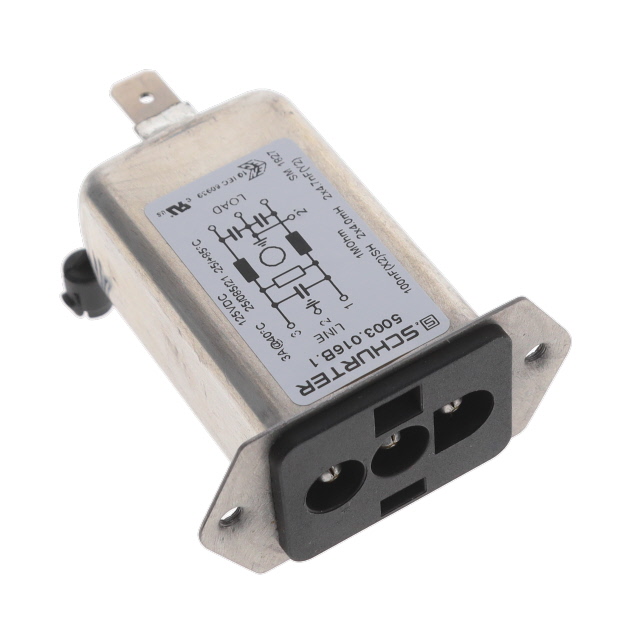

The SCHURTER Inc. model 5003.016B.1 is a single-phase EMC/EMI line filter module designed for panel mounting. It provides electromagnetic interference suppression with a rated current of 3 A and a maximum voltage of 125 V AC. The unit utilizes a single-stage filtering architecture to attenuate noise in power lines. Electrical connections are established via solder pin terminals, ensuring secure PCB integration. This component is engineered for applications requiring compact noise filtration solutions within low-voltage power supply circuits.

Feature Summary

• Single-stage EMI/EMC filtering architecture
• Panel-mount construction for chassis integration
• Solder pin terminal configuration for PCB attachment

Applications

• Power supply input stages
• Consumer electronics noise suppression
• Industrial control equipment filtering

Procurement Notes

Verify the specific electrical ratings and physical dimensions against the official Schurter datasheet before integration. Confirm that the solder pin pitch matches the target PCB layout. Ensure the application environment remains within the specified voltage and current limits to maintain certification validity and operational safety.

Selection Notes

Select this component when a compact, single-phase EMI filter is required for low-voltage applications. The 3 A rating suits moderate power loads. Verify compatibility with the available panel space and ensure the solder pin termination method aligns with the manufacturing process. Compare performance requirements against alternative multi-stage filters if higher attenuation is necessary.

Part Context

This part belongs to the Schurter power line filter module series. These modules are designed to meet international EMC standards for residential and industrial environments. The product line emphasizes compact form factors suitable for space-constrained electronic assemblies while providing effective common-mode and differential-mode noise reduction.

Replacement Considerations

Consult the official Schurter replacement guide for direct equivalents. Verify that any substitute maintains the same 3 A current rating, 125 V voltage rating, and single-stage topology. Ensure physical dimensions and pin configurations match to avoid PCB redesign.
