5003.0211.1

Overview

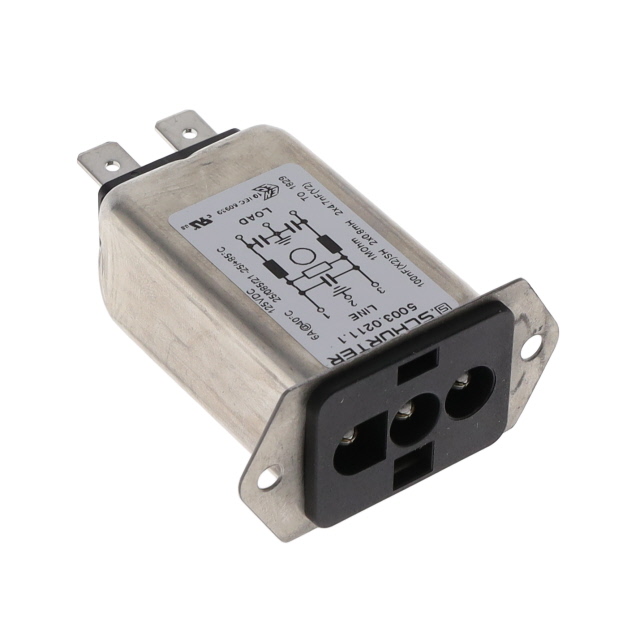

The SCHURTER 5003.0211.1 is an AC power entry module designed for appliance applications, featuring integrated DC filtering and ECO Design compliance. It supports a rated current of 6 A at 125 VDC and utilizes quick connect terminals (0.250") for circuit attachment. The unit employs thermoplastic housing with UL 94 V-0 flammability rating and operates within a temperature range of -25°C to +85°C. Panel mounting is the designated installation style.

Feature Summary

• Integrated DC filter functionality for noise suppression
• ECO Design compliant construction
• Quick connect terminal interface for simplified wiring

Applications

• Appliance power entry systems
• Electronic equipment requiring filtered DC input
• Panel-mounted power distribution units

Procurement Notes

Verify component authenticity through authorized Schurter channels or certified distributors. Confirm datasheet version alignment with specific manufacturing batches. Ensure environmental ratings match operational requirements. Validate regulatory certifications such as UL and RoHS status prior to integration into final assemblies.

Selection Notes

Select this model when filtered DC input is required for low-voltage appliance applications. The 6 A rating suits moderate power loads. Quick connect terminals facilitate assembly but require compatible mating connectors. Thermoplastic housing offers standard protection; verify enclosure needs against IP requirements.

Part Context

Part of the 5003 series AC power entry modules. This series focuses on compact, filtered inlet solutions for consumer and industrial appliances. The 5003.0211.1 variant specifically addresses DC filtering needs within the broader power entry portfolio.

Replacement Considerations

Cross-reference with other 5003 series variants for similar form factors. Verify electrical ratings and terminal compatibility before substitution. No direct public substitute part numbers are confirmed in available documentation.
