5003.0213.1

Overview

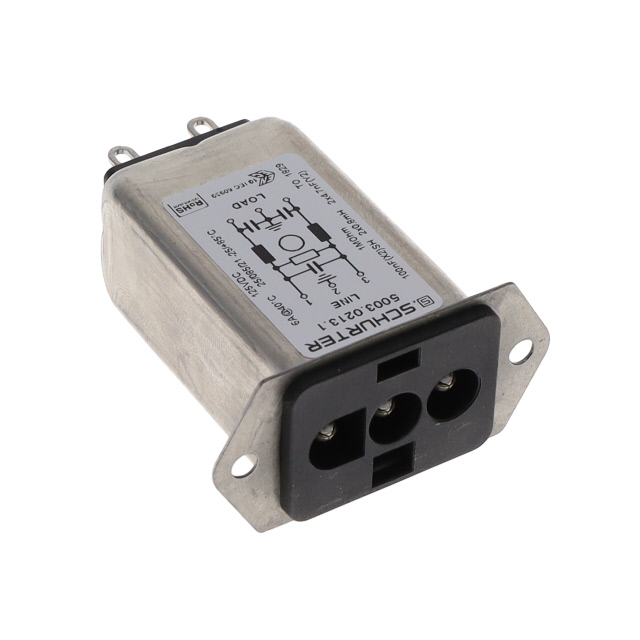

The Schurter 5003.0213.1 is an AC power entry module featuring a DC connector with integrated filtering. It has a current rating of 6 A and a voltage rating of 125 V. The unit utilizes solder terminals for connection and is designed for panel mount installation. This component belongs to the 5003 series and includes standard filtration capabilities without switching functions or fusing elements.

Feature Summary

• Integrated DC connector design
• Built-in standard filter functionality
• Solder terminal termination method

Applications

• Equipment requiring filtered DC power input
• Panel-mounted electronic enclosures
• Industrial control systems

Procurement Notes

Verify availability status as the component is listed as obsolete in some distributor records. Confirm specific datasheet revisions before integration. Ensure compatibility with existing panel cutouts and wiring harnesses. Check for RoHS compliance documentation if required by project specifications.

Selection Notes

Select this module when a combined DC inlet and EMI filter is required in a single panel-mount package. Compare against separate component assemblies for space efficiency. Verify that the 6 A rating meets system load requirements. Consider the solder terminal style for PCB or wire attachment methods.

Part Context

This part belongs to the Schurter 5003 series of AC power entry modules. The series typically offers various configurations including switched, fused, and filtered options. The 5003.0213.1 specifically addresses applications needing DC connectivity with noise suppression in a compact form factor.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Due to the obsolete status, direct replacements may require redesigning the enclosure or adapting mounting interfaces. Consult manufacturer archives for potential legacy alternatives.
