5003.0221.1

$11.48

Description：LINE FILTER 125VDC 6A PANEL MNT
Series：5003
Mfr：SCHURTER Inc.
Package：Bulk

SKU:0af564b55b8a Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125VDC 6A PANEL MNT
Series：5003
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：125V
Voltage - Rated AC：-
Current：6:00 AM
Frequency - Operating：-
Applications：Signal
Approval Agency：cURus, ENEC, UL, VDE
Operating Temperature：-25°C ~ 85°C
Mounting Type：Panel Mount
Termination Style：Quick Connect
Inductance：800µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5003.0221.1

Overview

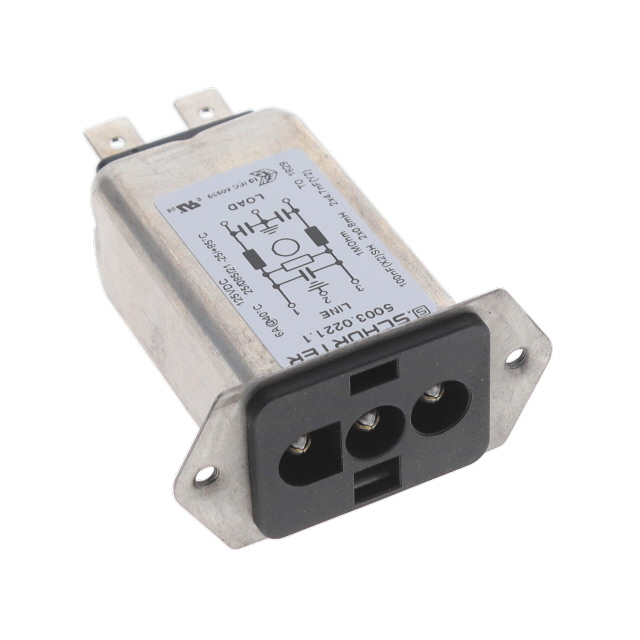

The SCHURTER 5003.0221.1 is a single-phase EMC/EMI line filter module designed for power line applications. It features a rated current of 6 A and operates at a voltage of 125 VAC. The component utilizes a quick connect termination type for circuit integration. This single-stage filter is engineered to suppress electromagnetic interference in low-voltage AC power systems, ensuring compliance with emission standards while maintaining signal integrity.

Feature Summary

Single-stage EMI suppression architecture
Quick connect termination interface
Compact power line filter design

Applications

Low voltage AC power supply filtering
Consumer electronics input stages
Medical equipment power inputs

Procurement Notes

Verify the specific datasheet version for the 5003.0221.1 model to confirm exact dimensional tolerances and mounting hole patterns. Ensure that the operating environment temperature range aligns with the component's specified limits. Cross-reference the quick connect terminal specifications with mating connector requirements to guarantee reliable electrical contact and mechanical retention during assembly.

Selection Notes

Select this component when a compact, single-stage solution is required for 125 VAC circuits with currents up to 6 A. The quick connect feature simplifies assembly compared to soldered alternatives. Evaluate space constraints against the module's physical footprint. Confirm that the attenuation characteristics meet the specific EMC requirements of the target application without necessitating additional filtering stages.

Part Context

This part belongs to Schurter's power line filter module series, which focuses on integrated EMI/EMC solutions. These modules typically combine capacitive and inductive elements within a single housing to provide efficient noise reduction. The series is characterized by standardized form factors suitable for various industrial and consumer electronic enclosures.
