5003.0231.1

Overview

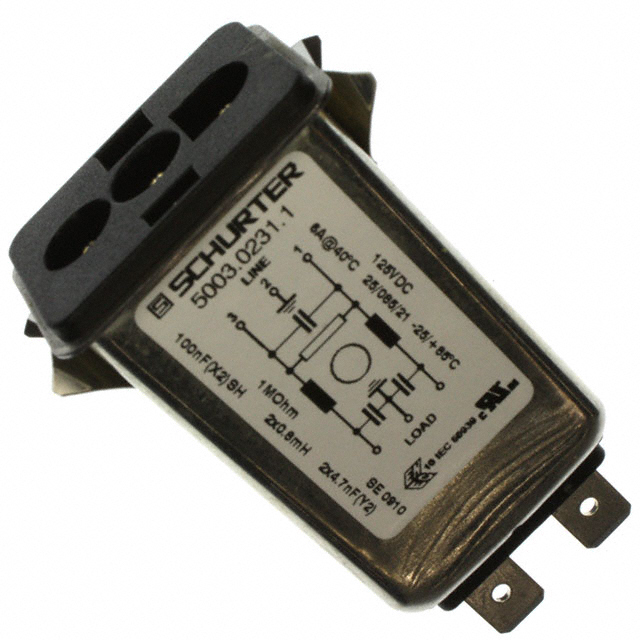

The SCHURTER 5003.0231.1 is an AC power entry module designed for panel mounting applications. It features a receptacle connector type with male pins and belongs to the TENCO series. The component has a voltage rating of 125VDC according to IEC standards. It does not include an integrated fuse or switching function. The housing is constructed from thermoplastic material, providing UL 94 V-0 flammability classification. The unit utilizes quick connect terminals with a 0.250-inch pitch for electrical termination.

Feature Summary

• Integrated RFI filtering capability for noise suppression
• Shock-safe design ensuring operator protection
• Thermoplastic housing with UL 94 V-0 flame retardancy

Applications

• Medical equipment power supply units
• Industrial control panels
• Test and measurement instruments

Procurement Notes

Verify the specific datasheet version to confirm the exact voltage ratings (AC vs DC) as sources vary between 125VDC and 125VAC. Ensure the receptacle mating part matches the male pin configuration. Confirm RoHS compliance status for the specific manufacturing batch if required by project specifications.

Selection Notes

Select this model when a filtered power inlet with shock-safe construction is required. Verify that the 125VDC rating meets the system requirements, as some variants support higher AC voltages. Ensure the quick connect terminal spacing aligns with the PCB layout or wiring harness design.

Part Context

This component is part of the Schurter TENCO series, which focuses on compact AC power entry modules. The series emphasizes safety and space efficiency for modern electronic devices. The 5003 series specifically targets applications requiring reliable power connection with basic filtering capabilities in a standard form factor.

Replacement Considerations

Cross-reference with other TENCO series models for alternative current ratings or filter configurations. Verify mechanical dimensions and terminal types before substituting with generic equivalents to ensure compatibility with existing enclosures.
