5003.025B.1

Overview

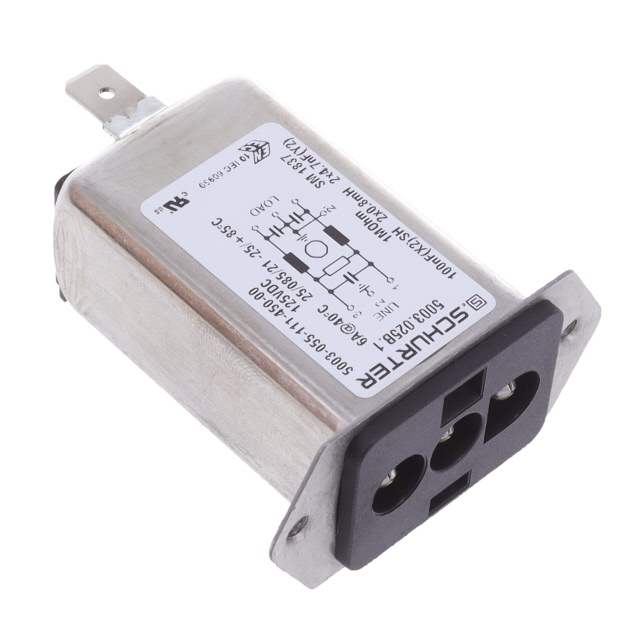

The Schurter 5003.025B.1 is a single-phase EMC/EMI line filter module rated for 6 A at 125 V AC. It features a one-stage design with PC pin termination for PCB mounting. The unit supports front or rear side mounting configurations and complies with ECO Design standards for appliance inlets.

Feature Summary

• Single-stage electromagnetic interference suppression
• PC pin termination for printed circuit board integration
• Flexible front or rear side mounting orientation

Applications

• Appliance inlet filtering
• Consumer electronics power supply protection
• General EMC compliance in low-power devices

Procurement Notes

Verify the specific datasheet version to confirm exact terminal dimensions and lead spacing before integration. Ensure the selected mounting orientation matches the mechanical constraints of the target enclosure. Confirm that the 6 A rating aligns with the maximum continuous load current of the application circuit.

Selection Notes

Select this component when a compact, single-stage solution is required for low-voltage AC applications. The PC pin format simplifies assembly compared to screw-terminal alternatives. Evaluate thermal dissipation requirements as the unit operates within standard ambient temperature ranges without active cooling.

Part Context

This model belongs to Schurter's line of power line filter modules designed for consumer appliances. It serves as an interface between the mains supply and internal circuitry, providing essential noise attenuation while maintaining a small footprint suitable for space-constrained electronic enclosures.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
