5003.026B.1

Overview

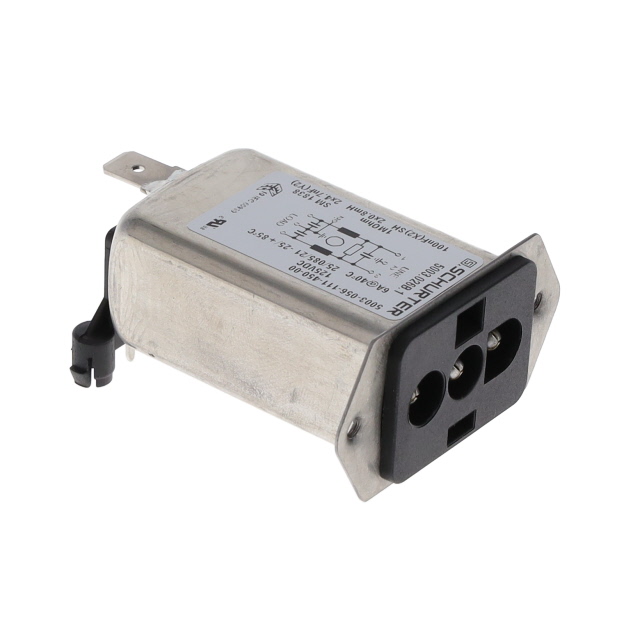

The Schurter 5003.026B.1 is a power entry module designed for AC power connection, featuring an integrated EMI filter. It has a rated current of 6A and supports voltages up to 250V AC. The unit utilizes solder termination for PCB mounting. Key certifications include UL, CSA, VDE, and CQC, ensuring compliance with international safety standards for electronic equipment.

Feature Summary

• Integrated electromagnetic interference (EMI) filtering capability
• Solder terminal construction for printed circuit board mounting
• Certified for global safety standards including UL and VDE

Applications

• Medical device power supplies
• Industrial control systems
• Information technology equipment

Procurement Notes

Verify the specific suffix code against the manufacturer's official datasheet to confirm exact pin configuration and certification scope. Ensure the selected variant matches the required voltage rating and current capacity for the target application. Cross-reference the component marking with the original documentation to prevent substitution errors.

Selection Notes

Select this component when a compact solution combining power inlet and noise suppression is required. Evaluate the thermal performance and physical dimensions against the enclosure constraints. Confirm that the soldering process parameters are compatible with the module's material specifications to maintain structural integrity.

Part Context

This model belongs to the Schurter 5003 series of power entry modules. The series is engineered for applications requiring reliable AC power connection with built-in filtering. The design emphasizes space efficiency and regulatory compliance for modern electronic devices.

FAQ

What is the maximum operating temperature?

The module is rated for operation at temperatures up to 70°C.

Does this unit include a fuse holder?

Yes, the module incorporates an integrated fuse holder for overcurrent protection.
