Product Detailed Parameters
- Description：LINE FILTER 125VDC 10A PANEL MNT
- Series：5003
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：125V
- Voltage - Rated AC：-
- Current：10:00 AM
- Frequency - Operating：-
- Applications：Signal
- Approval Agency：cURus, ENEC, UL, VDE
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Panel Mount
- Termination Style：Quick Connect
- Inductance：400µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

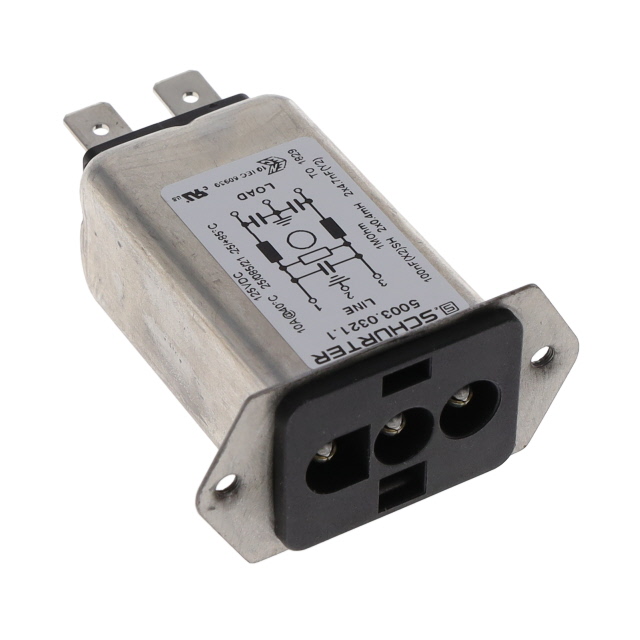

The SCHURTER 5003.0321.1 is a single-phase EMC/EMI line filter module designed for AC power input applications. It features a rated current of 10 A and operates at voltages up to 125 V AC. The component utilizes a single-stage filtering architecture to suppress electromagnetic interference. It employs quick-connect terminals for circuit integration and supports panel mount installation styles. This unit belongs to the 5003 series of power entry modules.
Feature Summary
- Single-stage EMI/RFI noise suppression
- Quick-connect terminal interface
- Panel mount configuration
Applications
- AC power input stages in electronic equipment
- EMC compliance filtering for consumer electronics
- Industrial control system power supplies
Procurement Notes
Verify the specific voltage rating requirements against the datasheet, as the model is listed with a 125V AC rating which may limit usage in higher voltage mains applications. Confirm that the quick-connect terminal type matches the PCB or wire harness design. Check RoHS compliance status directly from the manufacturer documentation before finalizing procurement specifications.
Selection Notes
Select this module when single-phase filtering is required for low-voltage AC inputs. Ensure the 10 A current rating meets the load requirements. Verify that the physical dimensions and mounting style fit the enclosure design. Compare against other 5003 series variants if different voltage ratings or terminal types are needed.
Part Context
This component is part of Schurter's 5003 series of AC power entry modules. These modules integrate filtering capabilities directly into the power inlet structure. The series provides solutions for meeting electromagnetic compatibility standards in various electronic devices requiring clean power input.
FAQ
What is the maximum operating voltage for this filter?
The datasheet specifies a maximum operating voltage of 125 V AC.
Does this module include an integrated switch?
No, this specific model is a non-switched filter module.
