5003.0331.1

Overview

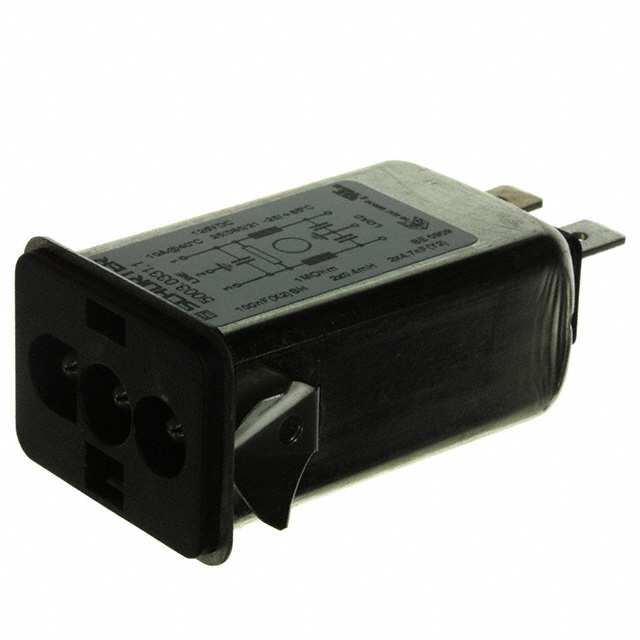

The SCHURTER 5003.0331.1 is a single-phase EMC/EMI line filter module designed for power entry applications. It features a current rating of 10 A and operates at 125 V DC. The unit provides filtered power entry capabilities in a compact module format, suitable for integration into systems requiring electromagnetic interference suppression.

Feature Summary

• Single-stage filtering architecture
• Panel-mount receptacle configuration
• Quick-connect terminal interface

Applications

• Power supply units
• Industrial equipment
• Medical devices

Procurement Notes

Verify the specific voltage rating requirements against the datasheet, as the product description references both 125V DC and AC contexts. Confirm that the quick-connect terminals match the wiring harness specifications. Ensure the module meets the required EMC standards for the target application environment before finalizing procurement.

Selection Notes

Select this module when a compact, single-phase filtered power entry solution is needed for low-voltage DC applications. The 10 A rating suits moderate power loads. Verify compatibility with panel cutouts and terminal types. Consider thermal management requirements within the enclosure design to ensure reliable operation under continuous load conditions.

Part Context

This component belongs to Schurter's Power Entry Module portfolio, specifically the 5003 series. These modules integrate filtering functions directly into the power inlet, simplifying system design by reducing the need for separate filter components. The series is engineered for space-constrained applications requiring efficient EMI suppression.
