Description：LINE FILTER 125VDC 10A PANEL MNT
Series：5003
Mfr：SCHURTER Inc.
Package：Bulk

SKU:96f91f0f56c8 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125VDC 10A PANEL MNT
Series：5003
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：125V
Voltage - Rated AC：-
Current：10:00 AM
Frequency - Operating：-
Applications：Signal
Approval Agency：cURus, ENEC, UL, VDE
Operating Temperature：-25°C ~ 85°C
Mounting Type：Panel Mount
Termination Style：PC Pins
Inductance：400µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5003.035B.1

Overview

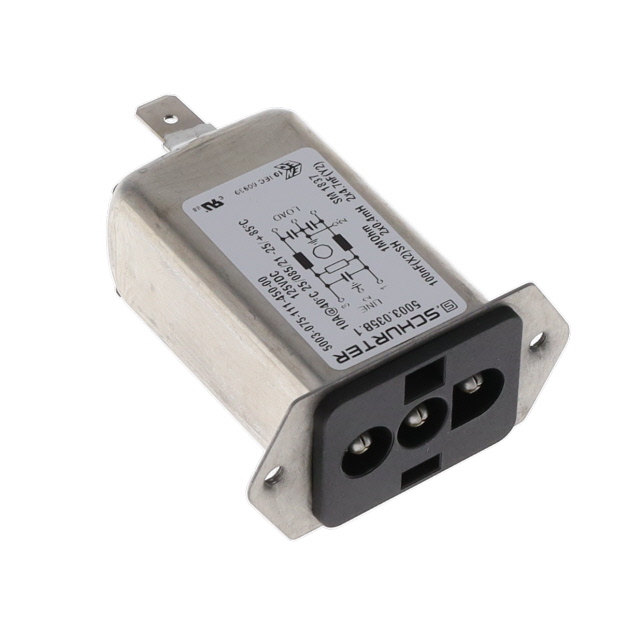

The SCHURTER 5003.035B.1 is a single-phase EMI/RFI power line filter module designed for appliance inlet integration. It features a rated current of 10 A and operates at voltages of 125 VAC or 250 VAC. The unit utilizes PCB pin termination for rear-side mounting, accommodating M3 screws via pre-formed threaded holes. Compatible with AMP Universal MATE-N-LOK or Molex MLX mating connectors, it provides electromagnetic interference suppression in a compact form factor suitable for front or rear panel installation.

Feature Summary

Integrated EMI/RFI filtering within an appliance inlet housing
Supports rear-side PCB mounting with pre-formed M3 screw threads
Compatible with standard AMP Universal MATE-N-LOK or Molex MLX connectors

Applications

Appliance inlet assemblies requiring integrated EMI suppression
Equipment needing front or rear side mounting configurations
Systems utilizing AMP Universal MATE-N-LOK or Molex MLX connector interfaces

Procurement Notes

Verify the specific voltage rating (125 VAC vs 250 VAC) required for your application against the datasheet specifications. Confirm that the mating connector type matches either the AMP Universal MATE-N-LOK or Molex MLX series as indicated in the official documentation. Ensure the PCB layout accommodates the rear-side mounting requirements and pre-formed threaded holes for M3 screws.

Selection Notes

Select this component when a combined appliance inlet and EMI filter solution is necessary to save space and simplify assembly. It is appropriate for designs requiring rear-side PCB mounting with standardized connector interfaces. Consider the thermal and electrical ratings relative to the load current and operating voltage to ensure compliance with safety standards.

Part Context

This part belongs to SCHURTER's range of power entry modules and filters. It integrates filtering capabilities directly into the inlet structure, differing from standalone filter blocks. The design focuses on compact integration for appliances, leveraging established connector ecosystems for ease of system integration and manufacturing.
