5003.036B.1

Overview

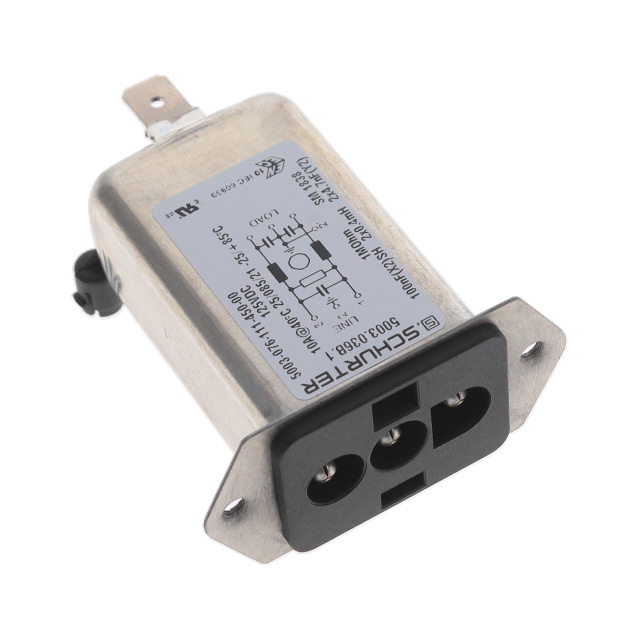

The Schurter 5003.036B.1 is a single-phase EMI/RFI power line filter module designed for electromagnetic interference suppression. It features a rated current of 10 A and operates at voltages up to 125 VAC. The unit utilizes PC pin termination for printed circuit board mounting and includes one port with three positions. This component is engineered for efficient noise reduction in electronic circuits requiring compact filtering solutions.

Feature Summary

• Provides effective EMI and RFI suppression for signal integrity
• Single-stage filtering architecture for targeted noise attenuation
• Compact form factor suitable for space-constrained PCB layouts

Applications

• Consumer electronics power input stages
• Industrial control system power supplies
• Medical equipment signal conditioning

Procurement Notes

Verify the specific voltage rating and current capacity against the application requirements before integration. Confirm that the PC pin pitch matches the target PCB footprint. Ensure compliance with relevant regional safety standards such as UL or CE if required by the end product regulations.

Selection Notes

Select this component when a low-profile, single-phase filter is needed for 125VAC systems. Consider the 10A current rating to ensure adequate headroom for peak loads. Evaluate the thermal performance characteristics relative to the enclosure environment to maintain optimal filtering efficiency under continuous operation.

Part Context

This part belongs to Schurter's range of power entry modules and filters. It serves as a critical interface component between the AC mains supply and sensitive downstream electronics. The design prioritizes reliable noise elimination while maintaining a small physical profile for modern electronic assemblies.
