5003.045B.1

Overview

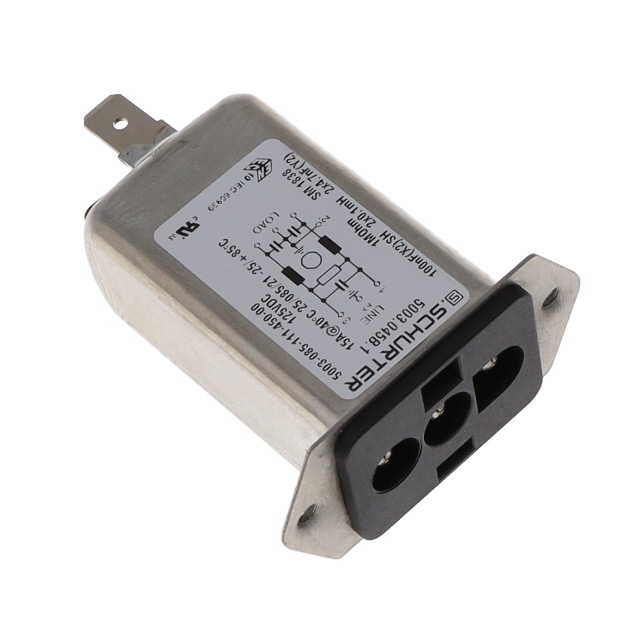

The SCHURTER Inc. model 5003.045B.1 is a single-phase EMC/EMI line filter designed for DC applications with a rated voltage of 125V and a current rating of 15A. It features a single-stage configuration intended for EMI/RFI suppression in signal processing environments. The unit supports front- or rear-side mounting and complies with ECO Design standards.

Feature Summary

• Single-phase EMC/EMI filtering for DC circuits
• Supports front- or rear-side mounting configurations
• Complies with ECO Design standards

Applications

• Signal processing equipment
• Power line filtering
• EMI/RFI suppression systems

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and terminal types before integration. Confirm that the 125VDC rating aligns with the target circuit requirements. Check for any updated compliance certifications relevant to the deployment region. Ensure mounting hardware compatibility with the selected enclosure design.

Selection Notes

Select this component for low-voltage DC applications requiring single-stage noise attenuation. Evaluate the 15A current capacity against peak load demands. Consider the physical mounting constraints due to the front- or rear-side installation options. Verify thermal management needs within the enclosed system environment.

Part Context

This part belongs to Schurter's power entry module and filter series, focusing on electromagnetic interference mitigation. It serves as a protective interface between the power source and sensitive electronic loads, ensuring signal integrity by suppressing conducted noise across the power line.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer channels for direct equivalents or cross-reference lists.
